产品介绍：

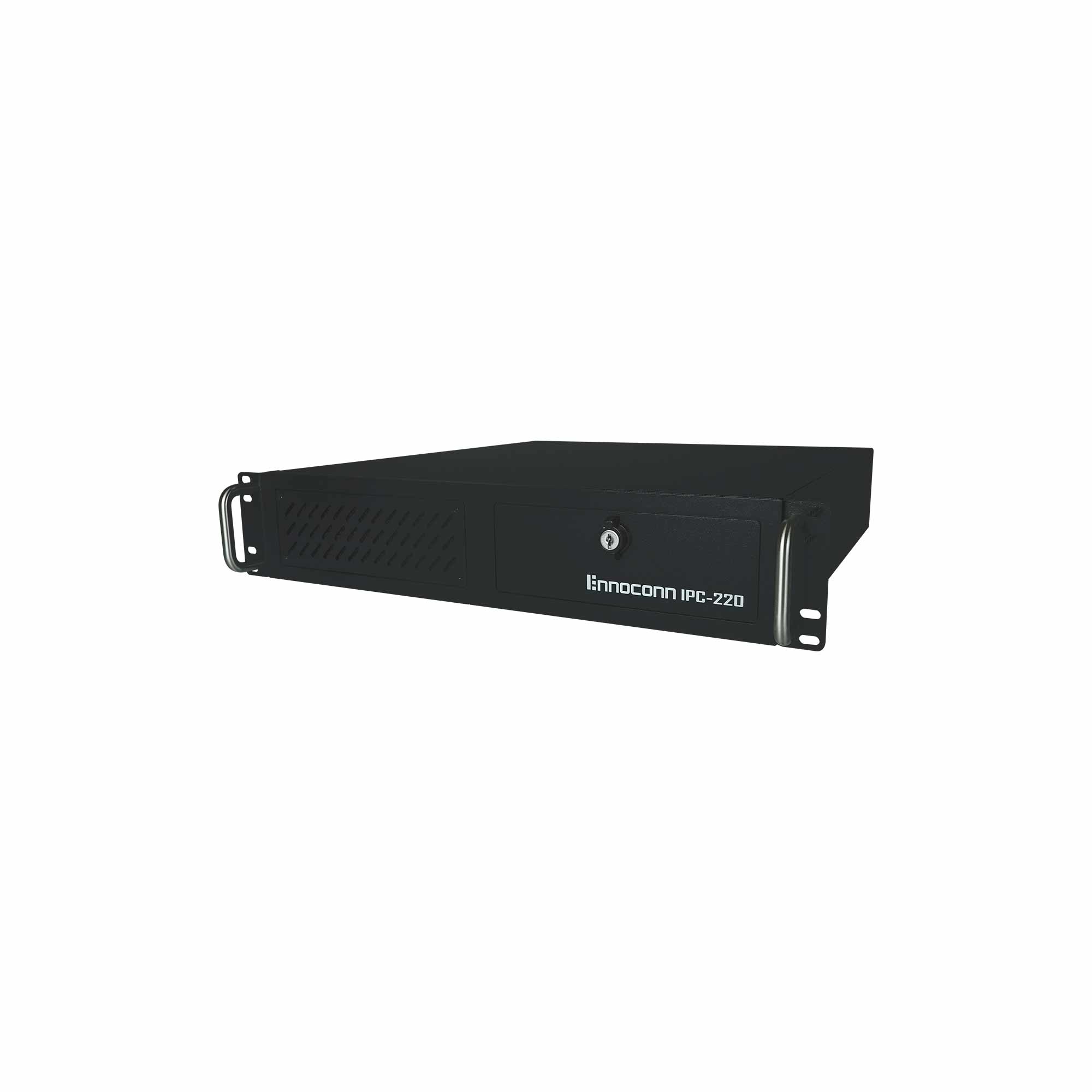

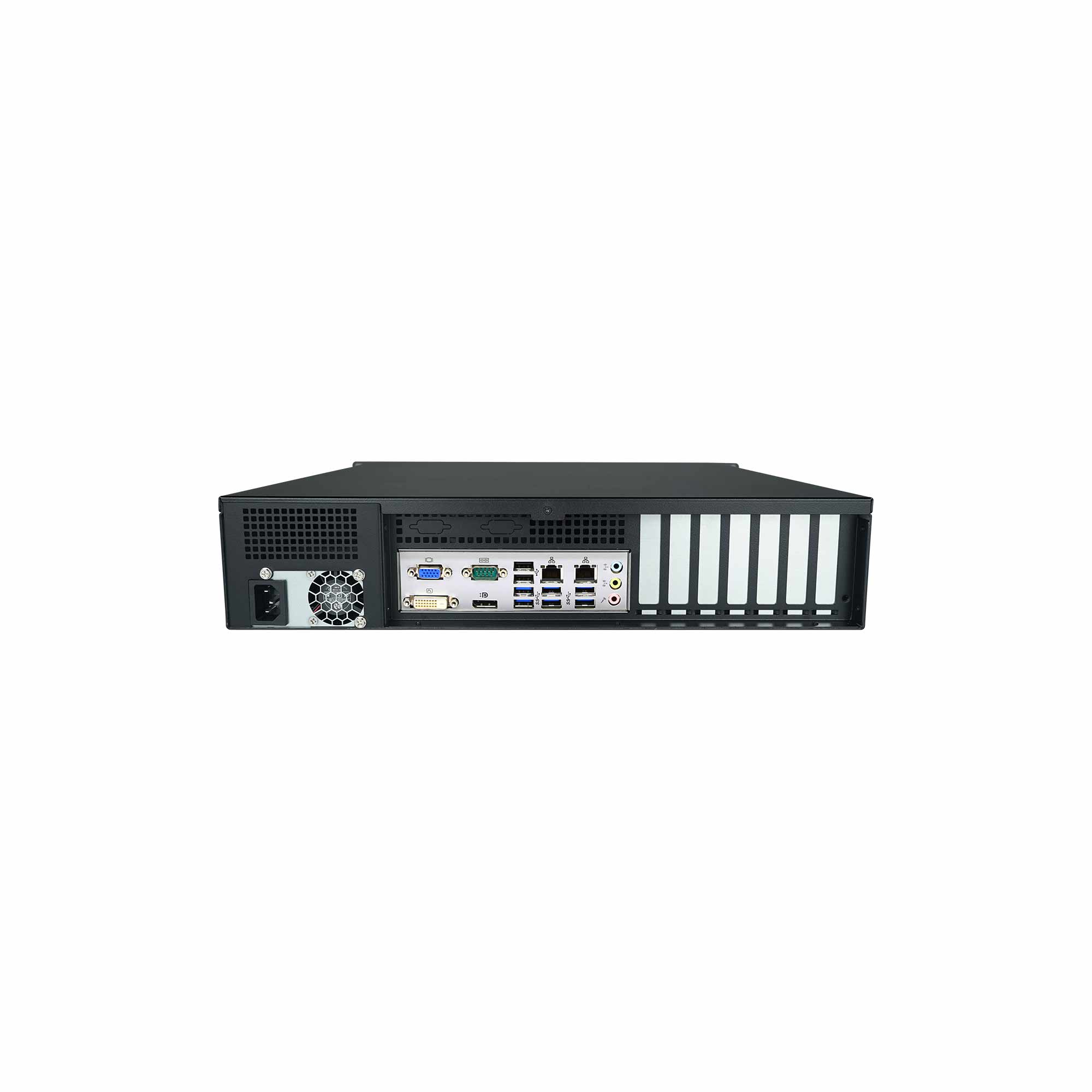

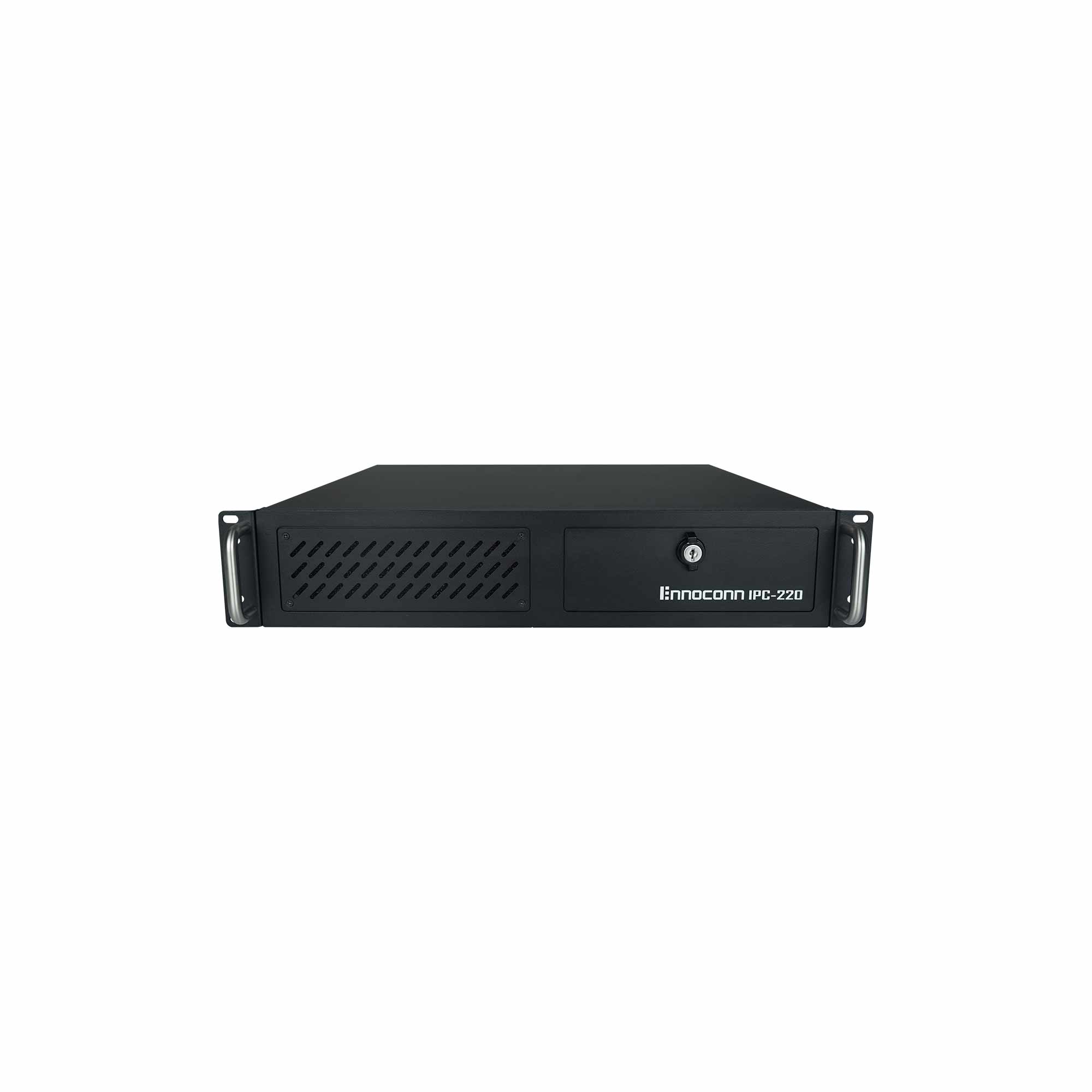

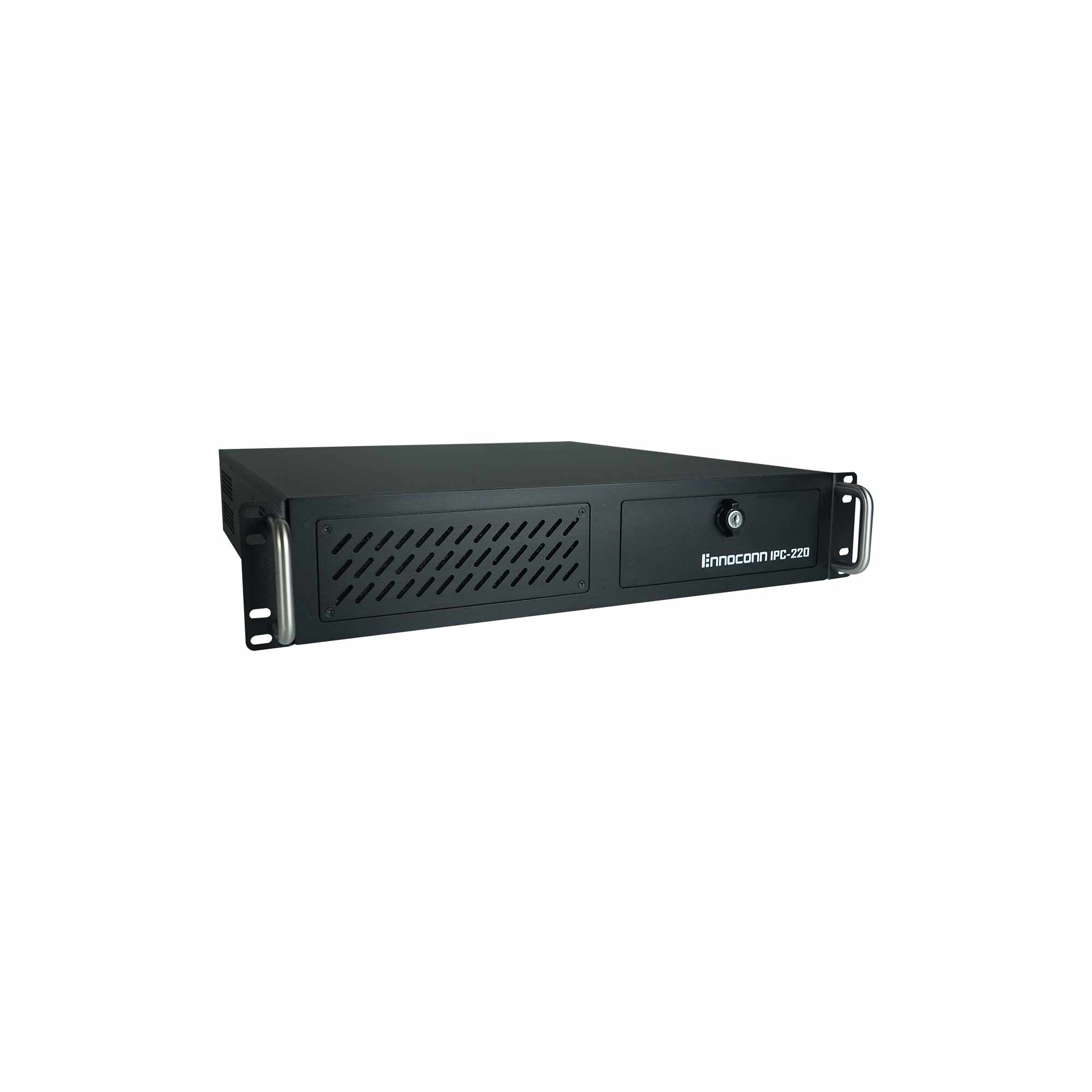

2U, Q87 Chipset, 2 x LAN, VGA/DVI-D, 12 x USB, 6 x COM, PCIe, PCI
| 处理器 Processor | Intel® 6th/7th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W |
| 芯片组 Chipset | Intel® Q170 Chipset |
| 内存 Memory | Dual Channel, 4 x U-DIMM Slot, DDR4 2133/2400MHz , up to 64GB |
| 图形 Graphics | Intel® HD Graphics, triple display |
| 存储 Storage | 4 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0/PCIe3.0 supported) |
| 操作系统 OS | 6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
| 信赖平台模块 TPM | Nuvoton TPM1.2(optional, need MOQ) |
| 网口 Ethernet | 1 x Intel® i219-LM GbE, 1 x Intel® i211-AT (10/100/1000 Mbps) |
| 显示 Video | 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP++: max resolution up to 4096 x 2304@60Hz |
| 串口 COM | 1 x RS232/422/485 (with auto flow control) |
| USB | 6 x USB 3.0, 4 x USB 2.0 (Rear USB ports support Ennoconn USB SR Pro) |
| 按钮 Button | 1 x Power Button, 1 x Reset Button |
| 指示灯 LED | 1 x Power LED, 1 x HDD LED |
| 扩展接口 Expansion | 2 x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link) , 2 x PCI |
| 风扇 FAN | 1 x CPU Fan, 2 x System Fan |
| USB | 3 x USB2.0 (Type-A share USB signal with one USB2.0) |
| GPIO | 1 x 16-bit GPIO |
| 串口 COM | 1 x RS232/422/485, 2 x RS232/485, 2 x RS232 |
| LPT | 1 x LPT |
| PS/2 | 1 x PS/2 pinheader (keyboard and mouse) |
| 操作温度 Operating Temp. | 0℃ ~ 40℃ |
| 存储温度Storage Temp. | -20℃ ~ 60℃ |
| 湿度Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
| 随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation |
| 正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation |
| 机械冲击 Shock | 10G @ 11ms operation |
| 电源输入 Power Input | 100~240V(AC) |
| 电源功耗 Power Watt | 250W |
| 外观 Housing | SGCC |
| 尺寸 Dimension | 481.6(L) x 450.0(W) x 88.6(H)mm |
| 重量 Weight | 10kg( 约) |
| 安装方式 Mounting | 机柜式 (Rack-Mount) |
| 安规认证 Safety Certification | CCC |
