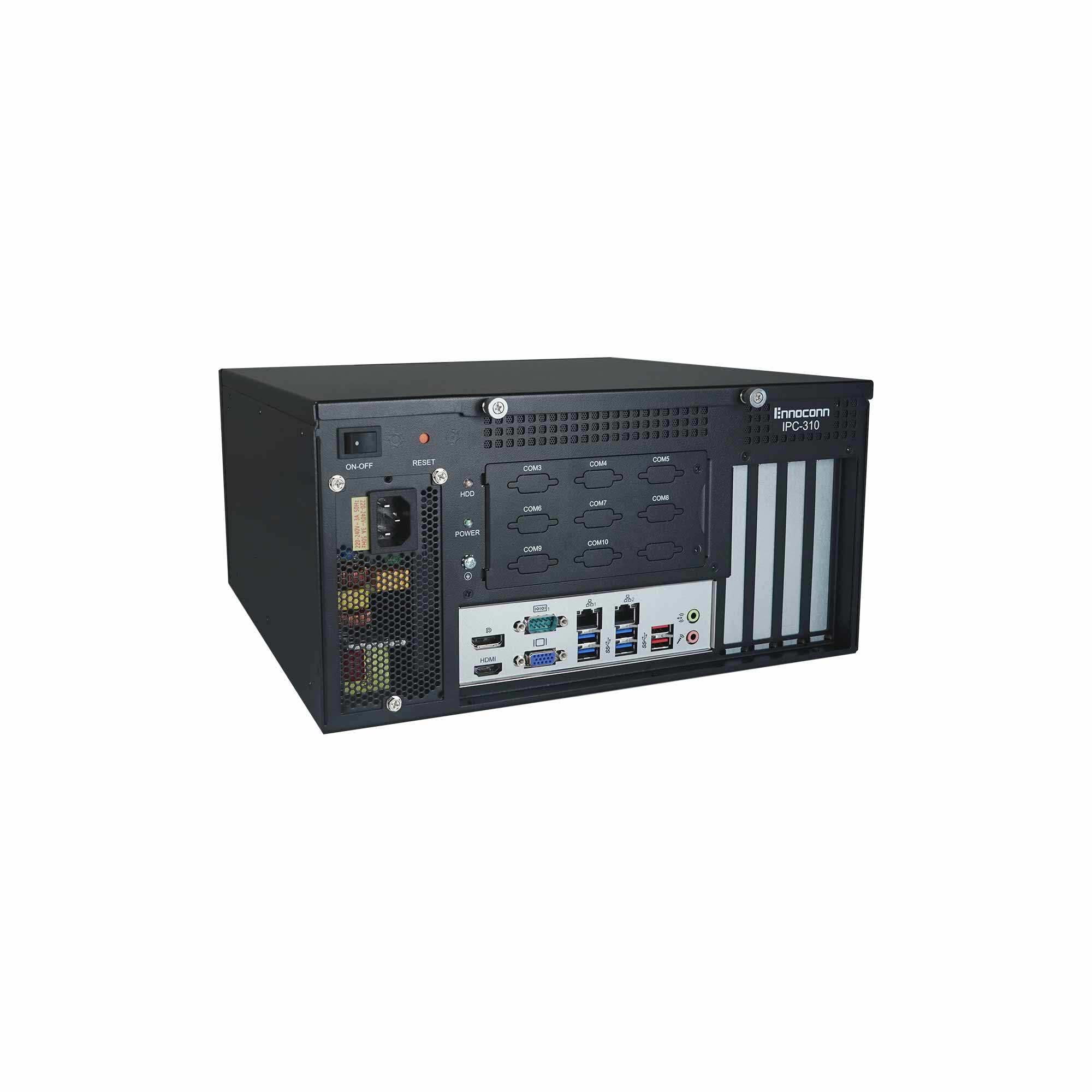

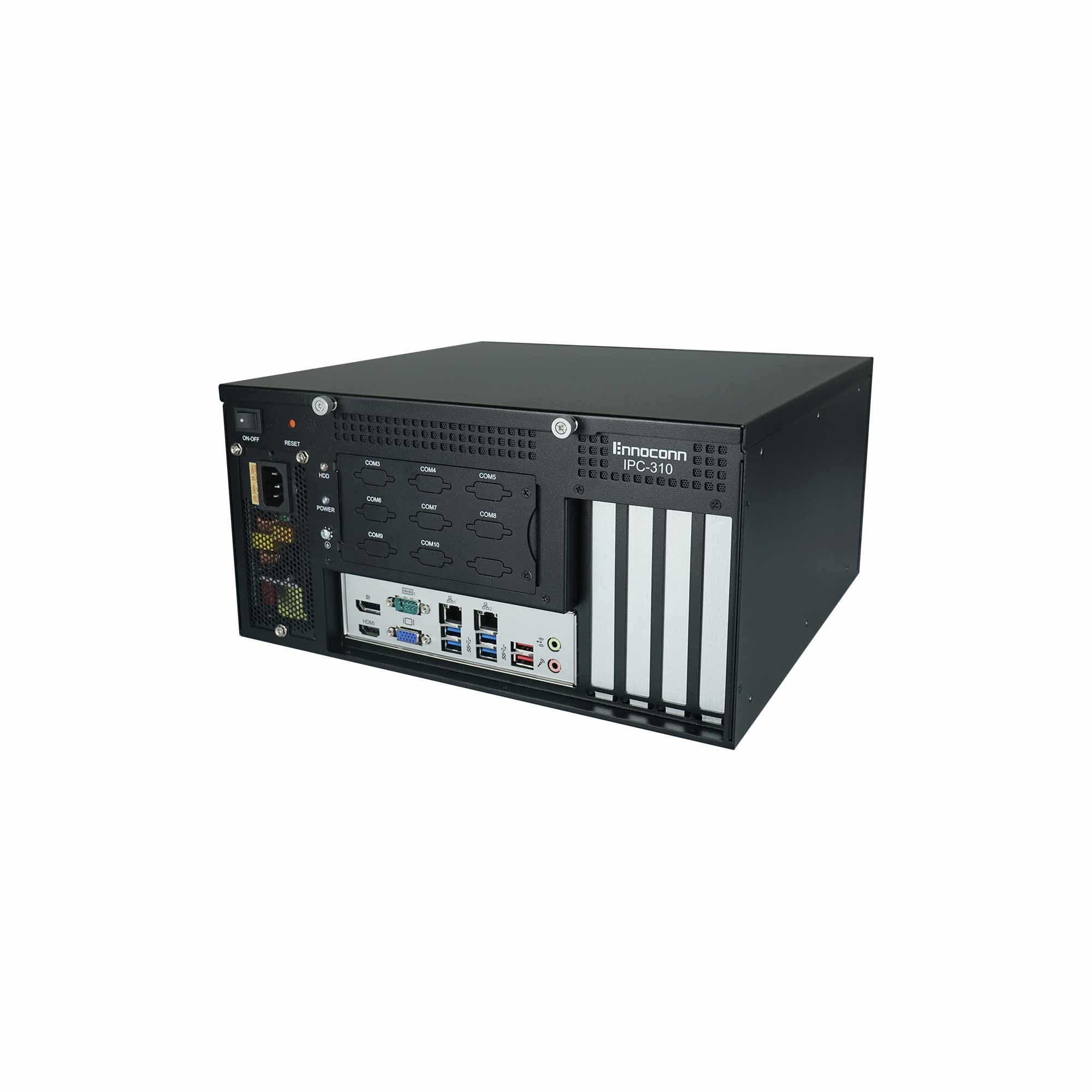

3U工控机 CEFS-DM21-H42A

Support Intel^® 10th/11th Gen. CoreTM i3/i5/i7/i9、Pentium^®、Celeron^® Processor
Support Dual Channel DDR4 2666/2933 MHz, up to 64GB
Support HDMI/DP/VGA dual display
Support dual Intel LAN, 13 x USB, 10 x COM (2 x RS232/422/485 with auto Flow, 8 x RS232)
Support 1 x PCIe X16, 1 x PCIe X4, 2 x PCI Slot
Anti shock design, support 1 x 2.5 inch SSD, 2 x 3.5 inch HDD
Support USB Power off under S5
Support Ennoconn USB SR Pro for rear USB ports

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

3U工控机, Intel®10th/11th Gen. CoreTM i3/i5/i7/i9、Pentium^®、Celeron^® Processor

系统 System

处理器 Processor	Intel^® 10th/11th Gen. Core ™ i3/i5/i7/i9, Pentium^®, Celeron^® Processor, LGA1200 Socket, TDP up to 65W
芯片组 Chipset	Intel^® H420E
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR4 2666/2933MHz, up to 64GB
图形 Graphics	Intel^® HD Graphics
存储 Storage	3 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0 signal)
操作系统 OS	Windows 10 64bit, Linux
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255s
信赖平台模块 TPM	Nuvoton TPM2.0(optional, need MOQ)

外部接口 External I/O

网口 Ethernet	1 x Intel^® I225LM co-lay i225-V GbE (10/100/1000 Mbps) 1 x Intel^® I219LM GbE (10/100/1000 Mbps)
显示 Video	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP: max resolution up to 4096 x 2304@60Hz
音频 Audio	1 x Line-out, 1 x Mic-in, Line in(optional, need MOQ)
串口 COM	1 x RS232/422/485 with Auto Flow 1 x Line-out, 1 x Mic-in, Line in(optional, need MOQ)
USB	6 x USB3.2 Gen1
按钮 Button	1 x Power Button, 1 x Reset Button
指示灯 LED	1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展接口 Expansion	1 x PCIe X16 (Gen3) 1 x PCIe X4 (Gen3) 2 x PCI
风扇 FAN	1 x CPU Fan, 2 x System Fan
USB	6 x USB2.0, 1 x USB2.0 (Type-A)
GPIO	1 x 16 bit GPIO
串口 COM	1 x RS232/422/485 with Auto Flow 8 x RS232
PS/2	1 x PS/2 (for Keyboard and Mouse)
Audio	1 x F_Audio

环境 Environmental

操作温度 Operating Temp.	0℃ ~ 40℃
存储温度Storage Temp.	-20℃ ~ 60℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10G @ 11ms operation

电源 Power

电源输入 Power Input	180~240V(AC)
电源功耗 Power Watt	270W

机构 Mechanical

外观 Housing	SGCC
尺寸 Dimension	316(L) x 326(W) x 164(H)mm
重量 Weight	7.95kg( 约)
安装方式 Mounting	桌面式 (Desk-Mount)，壁挂式 (Wall-Mount)
