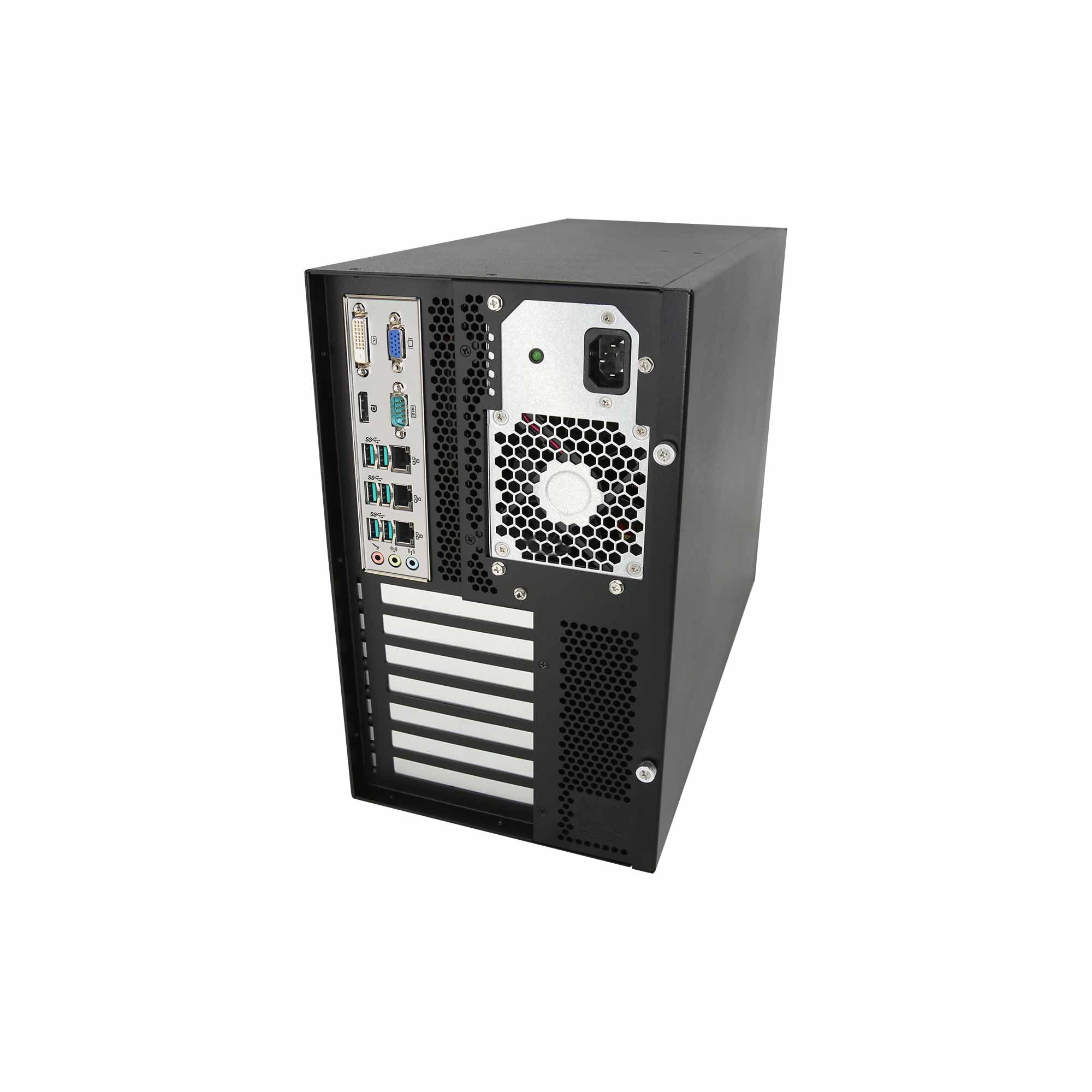

塔式工控机 CEFS-TA31-W48A

Intel^®10代酷睿 i9/i7/i5/i3/至强^®处理器, 功耗最高支援到95W, 支持intel vPro
双通道4插槽 DDR4 ECC/Non-ECC 2400/2666/2933MHz, 高达128GB(酷睿 i5/i7/i9 只支持Non-ECC)
支持VGA, DVI-D, DP三屏显示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
内置PCI, PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、2个3.5"HDD硬盘

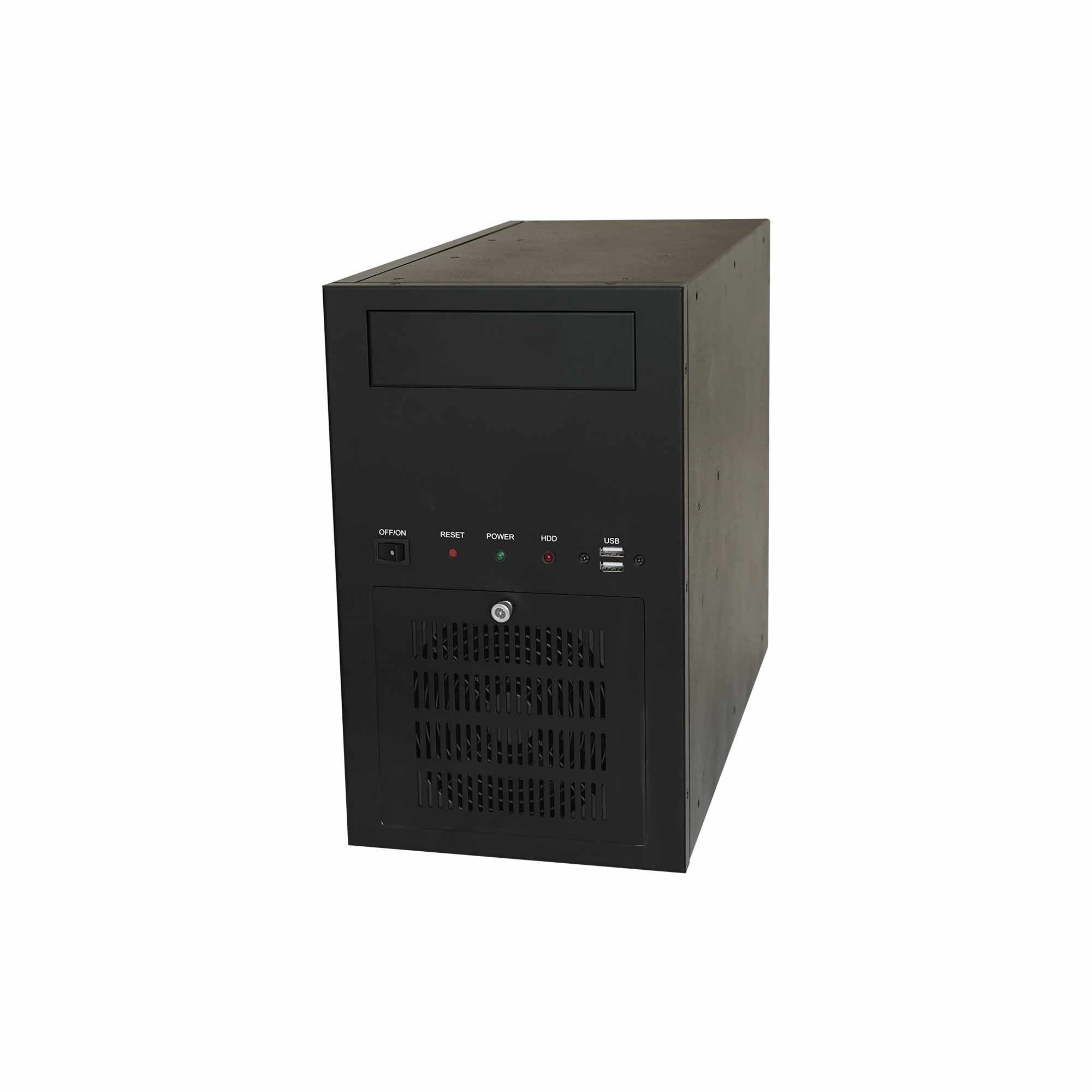

前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 10th Gen Core ™ i9/i7/i5/i3/Xeon®Processor, LGA1200, TDP up to 95W

系统 System

处理器 Processor	Intel^® 10th Gen Core ™ i9/i7/i5/i3/Xeon^®Processor, LGA1200, TDP up to 95W
芯片组 Chipset	Intel^® W480E
内存 Memory	4 x DDR4 ECC/Non-ECC 2400/2666/2933 MHz U-DIMM Slot, up to 128GB(Core ™ i5/i7/i9 only support Non-ECC)
图形 Graphics	Intel^® UHD Graphics 630
存储 Storage	4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280
操作系统 OS	Windows 10, Linux
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信赖平台模块 TPM	Nuvoton TPM2.0(optional, need MOQ)

外部接口 External I/O

网口 Ethernet	1 x Intel^® i219-LM GbE, 2 x Intel^® i211-AT/i210-AT (10/100/1000 Mbps)
显示 Video	1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2304 @ 60Hz
音频 Audio	1 x Line-out, Line-in, Mic-in
串口 COM	1 x RS232/422/485 (with auto flow control)
USB	6 x USB3.2 Gen2, 2 x USB2.0
按钮 Button	1 x Power Button, 1 x Reset Button
指示灯 LED	1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展接口 Expansion	2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI
风扇 FAN	1 x CPU Fan, 2 x System Fan
USB	6 x USB2.0 (1 x Type-A)
GPIO	1 x 16 bit GPIO
串口 COM	1 x RS232/422/485 (with auto flow control), 2 x RS232/485, 2 x RS232
LPT	1 x LPT
PS/2	1 x PS/2 (keyboard and mouse)

环境 Environmental

操作温度 Operating Temp.	0℃ ~ 40℃
存储温度Storage Temp.	-20℃ ~ 60℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10G @ 11ms operation
