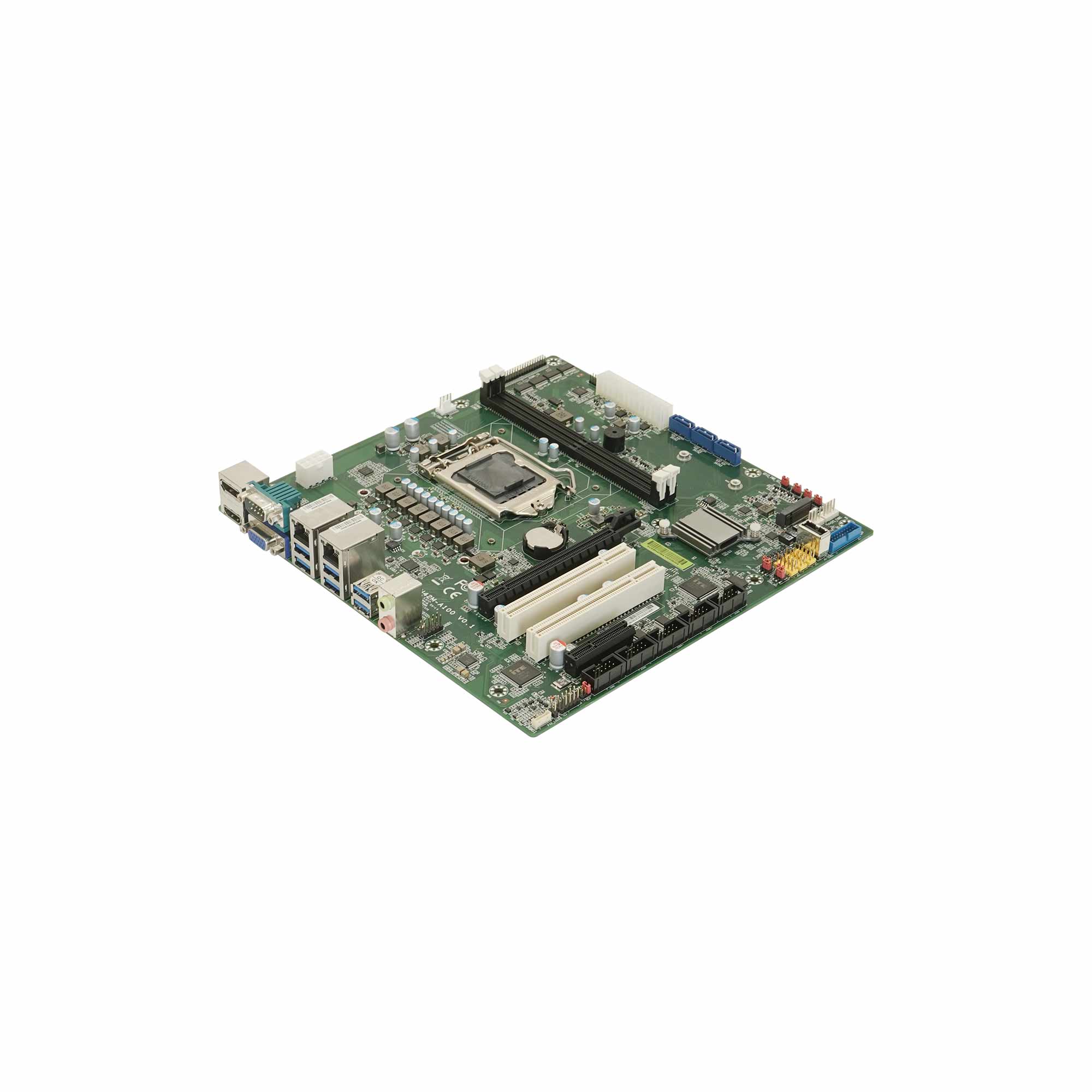

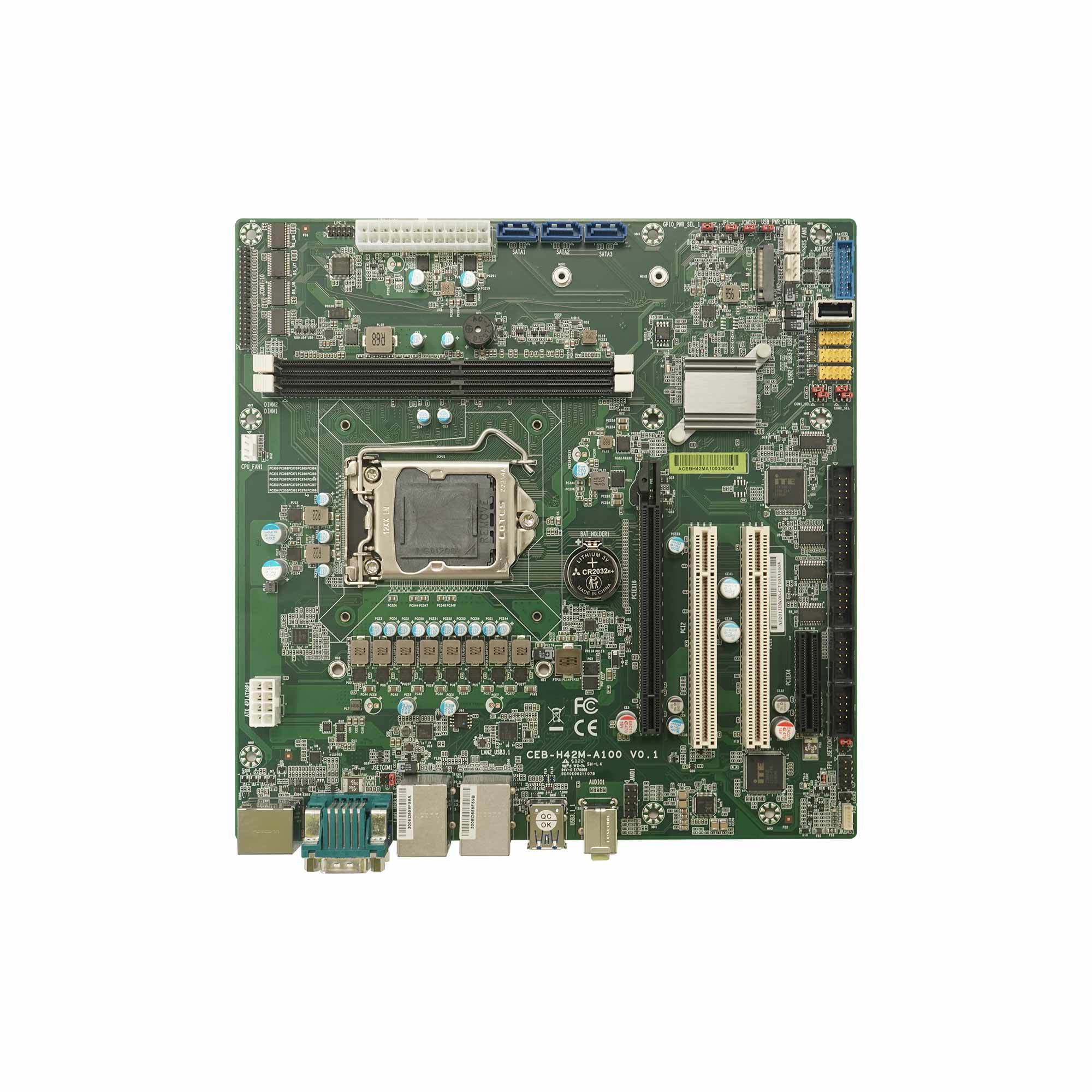

Micro-ATX工业主板 CEB-H42M-A100

Support Intel^® 10th/11th Gen. CoreTM i3/i5/i7/i9、Pentium^®、Celeron^® Processor
Support 2 x DDR4 DIMM memory Slot, up to 64GB
Support HDMI/DP/VGA dual display
Support Ennoconn USB SR Pro Technology
Support dual Intel LAN, 13 x USB, 10 x COM (2 x RS232/422/485 with auto Flow, 8 x RS232)
Support 1 x PCIe X16, 1 x PCIe X4, 2 x PCI Slot
Support USB Power off under S5

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 10th/11th Gen. Core ™ i3/i5/i7/i9, Pentium®, Celeron® Processor, LGA1200 Socket, TDP up to 65W

处理器 Processor	Intel^® 10th/11th Gen. Core ™ i3/i5/i7/i9, Pentium^®, Celeron^® Processor, LGA1200 Socket, TDP up to 65W
芯片组 Chipset	Intel^® H420E
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR4 2666/2933MHz, up to 64GB
存储 Storage	3 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0 signal)
显示 Display	Intel^® HD Graphics
网口 Ethernet	1 x Intel^® I226V co-lay i226-LM GbE (10/100/1000/2500 M bps) 1 x Intel^® I219LM GbE (10/100/1000 Mbps)
音频 Audio	Realtek^® ALC888S(colay with ALC897) HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

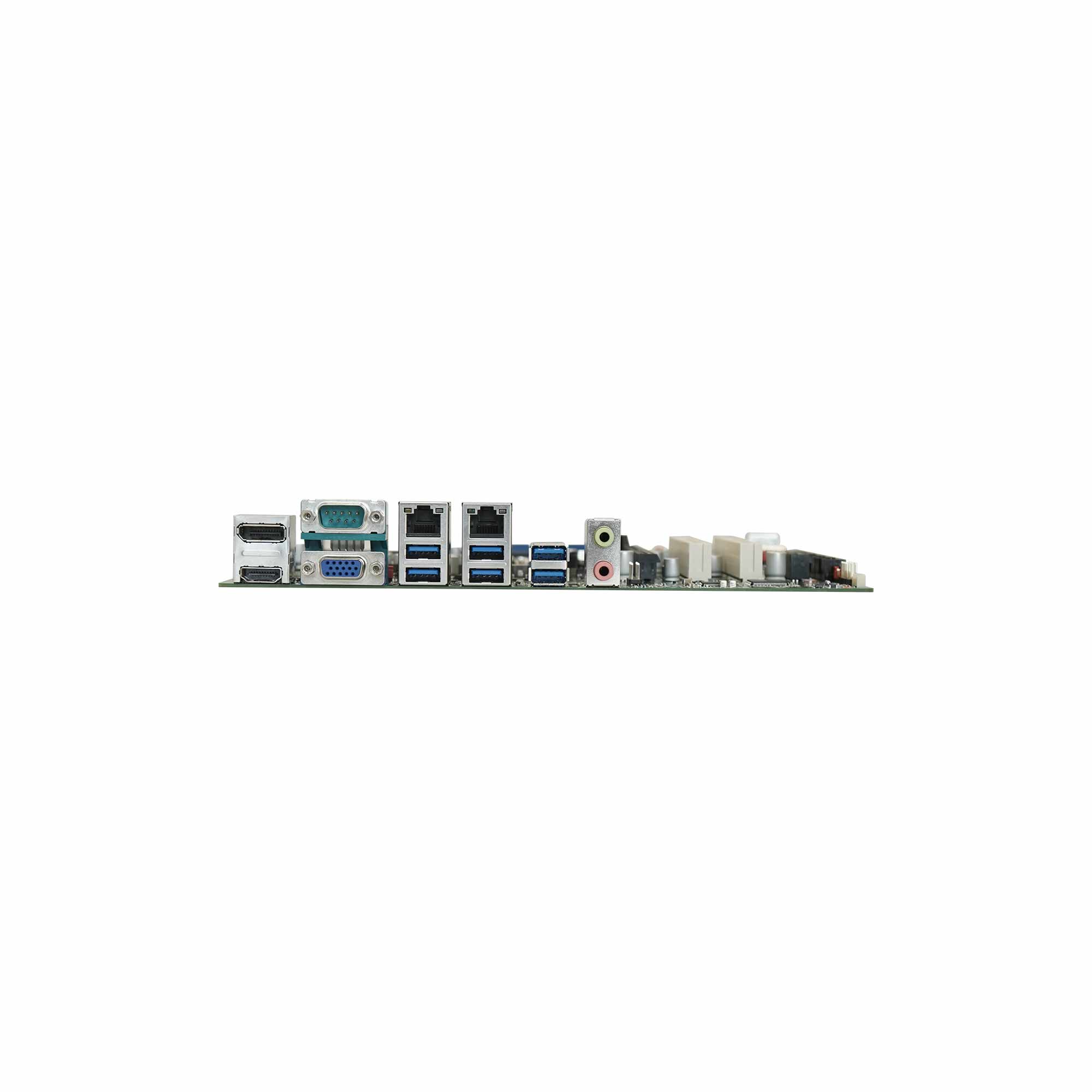

外部接口 Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP: max resolution up to 4096 x 2304@60Hz 2 x RJ45 6 x USB3.2 Gen1 1 x RS232/422/485 with Auto Flow 1 x Line-out, 1 x Mic-in, Line in(optional, need MOQ)
内部接口 Internal I/O	1 x RS232/422/485 with Auto Flow 8 x RS232 6 x USB2.0, 1 x USB2.0 (Type-A) 1 x 16 bit GPIO 1 x F_Audio 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse)
扩展接口 Expansion	1 x PCIe X16 (Gen3) 1 x PCIe X4 (Gen3) 2 x PCI 1 x M.2 (SATA3.0）
信赖平台模块 TPM	Nuvoton TPM2.0(optional, need MOQ)
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6")
操作系统 OS	Windows10 64Bit, Linux
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
