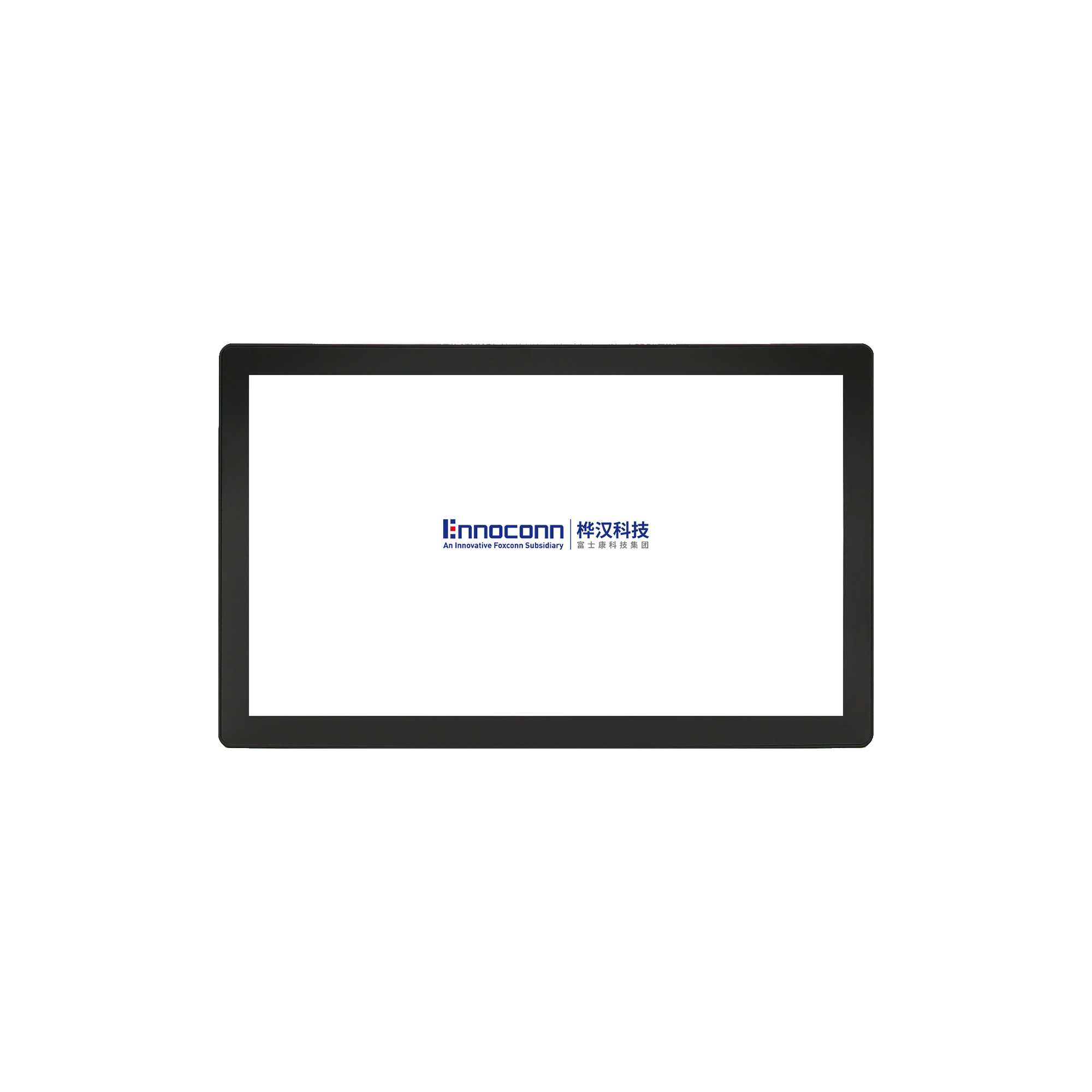

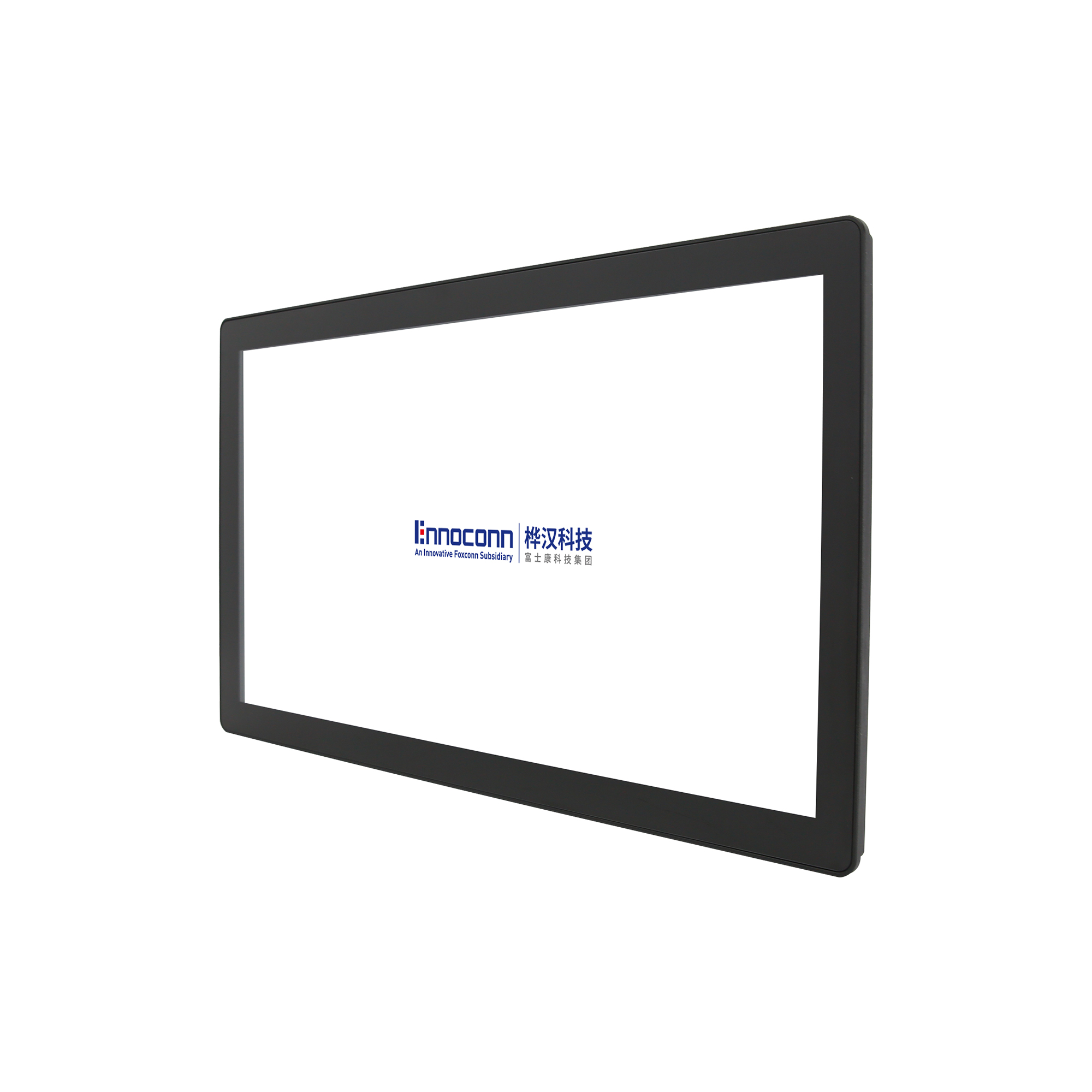

21.5寸工业平板电脑 CEP-21PW-Q37E

Intel^® Coffee lake处理器
21.5寸 LED背光显示屏，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级10点投射式电容触摸屏
支持双千兆网口
支持WiFi/BT/4G/5G(可选）
宽压12~36V DC-IN, 可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
支持PCIe X16/PCIe X8/PCIe X4/PCIe X1扩展插槽

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

工业无风扇触摸一体机，采用21.5寸全平面五线电阻屏， Intel Celeron G4900T/Intel® Core ™ i3-8100T/i5-8500T/i7-8700T

系统 System

处理器 Processor	Intel Celeron G4900T (2.9GHz)-2 cores/2 Cache Intel^® Core ™ i3-8100T Processor (3.1GHz)-4 cores/4 Cache Intel^® Core ™ i5-8500T Processor (2.1GHz, up to 3.5GHz)-6cores/6 Cache Intel^® Core ™ i7-8700T Processor (2.4GHz, up to 4.0GHz)-6 cores/12 Cache
内存 Memory	2 x DDR4 2400/2666 MHz SO-DIMM, up to 32 GB
存储 Storage	1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2280 SSD slot
图形 Graphics	Intel^® UHD Graphics 610/630
操作系统 OS	Windows 10, Linux
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

尺寸 Size	21.5 inches
分辨率 Resolution	1920 x 1080
屏幕宽高比 Ratio	16:9
亮度 Brightness	250nits
可视角 Viewing Angle	CR ＞ 10, 89° (H)/89° (V) ;
对比度 Contrast Ratio	1000
背光 Backlight	LED Backlight
背光寿命 Backlight Lifetime	30000Hrs

触摸屏 Touchscreen

触摸屏 Touch Type	10 点投射式电容屏 P-cap Multi-Touch
触击 Touch	35,000,000 times

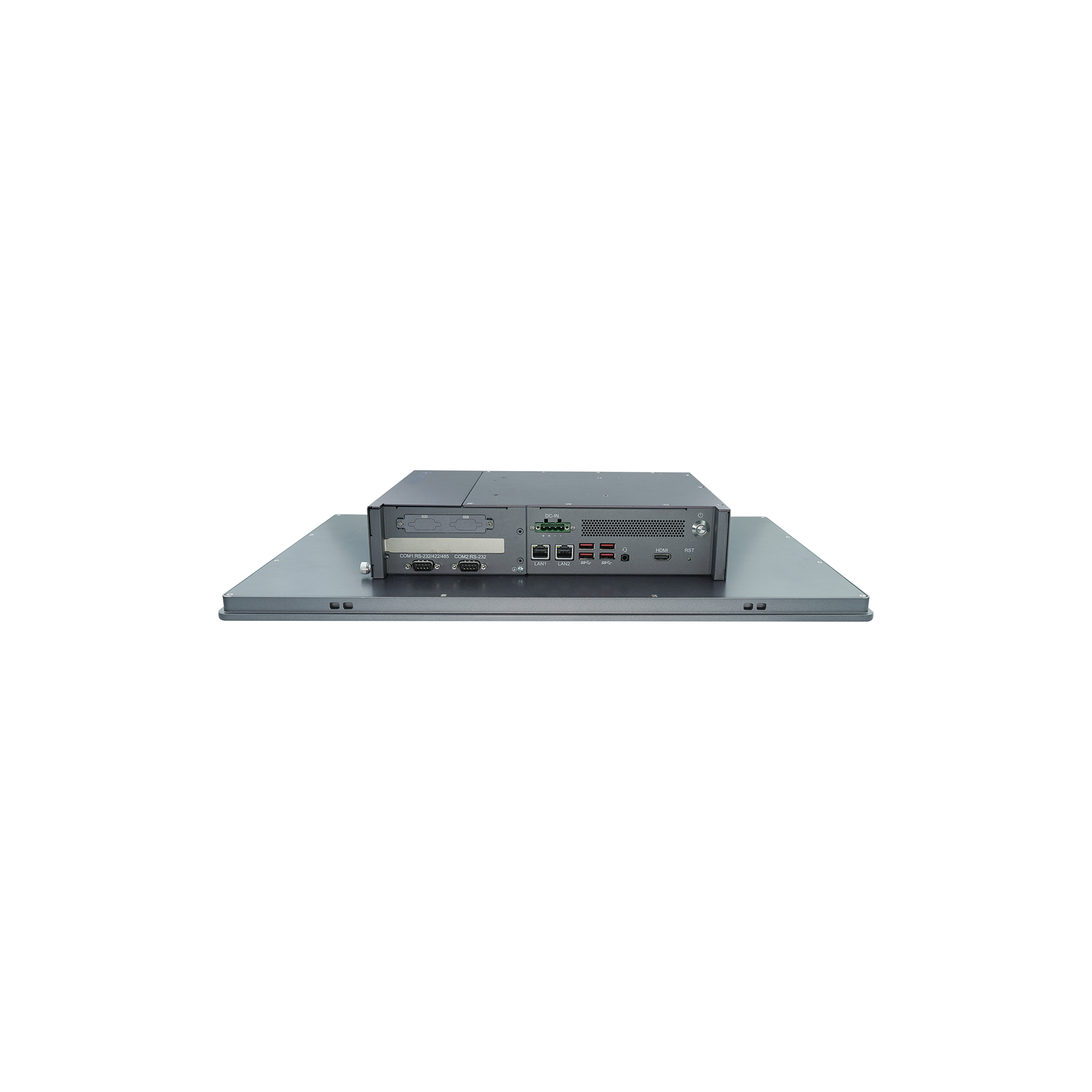

外部接口 External I/O

串口 COM	1 x RS232/RS422/RS485(COM1) 1x RS232
O-Door	2COM/2USB/1 GPIO optional
USB	4 x USB 3.0
网口 Ethernet	1 x RJ45 Intel^® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel^® I219-LM GbE (10/100/1000 Mbps)
显示 Video	1 x HDMI (up to 4096 x 2304@24hz)
音频 Audio	1 x Audio(Line-out&Mic-in 2 in 1), Realtek^® ALC888S-VD2-GR HD Audio codec 2 x Speaker 4Ω3W
重置Reset	1 x HW reset
开关按键Power bottom	1 x Power bottom W/LED ( System 上电 -LED OFF/Power ON-LED ON/Power OFF-LED OFF)
电源输入 Power Input	1 x Power Connector (4P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x PCIe X16 expansion Slot, PCIe Card dimension not larger than174.55mm(W)x111.15mm(H)x30.71mm(D) 1 x 9Pin (SATA LED/Power LED/OS reset) 1 x M.2 Key-B 3052slot (4G/5G supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 2 x USB3.0 2 x USB2.0 2 x RS232

机构 Mechanical

前框 Front Panel	铝 Aluminum
后盖 Back cover	铁 SECC
底板 Rear Cover	铁 SECC
安装方式 Mounting	Panel Mount, Wall and VESA-mount (75 x 75mm
尺寸 Dimension	528.2 X 321.9 X 81.6mm
建议开孔尺寸Cut Out	520.2 x 313.9mm
重量 Weight	7.0Kg

环境 Environmental

操作温度 Operation Temp.	-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 40℃ with 0.7 m/s air flow (HDD)
存储温度 Storage Temp.	-40℃ ~ 70℃
湿度 Relative Humidity	5% ~ 95%, 非凝结状态 Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10g 11ms operation, 30g 11ms Non-operation
前面板防护 Ingress Protection	Front panel IP66
