产品介绍:

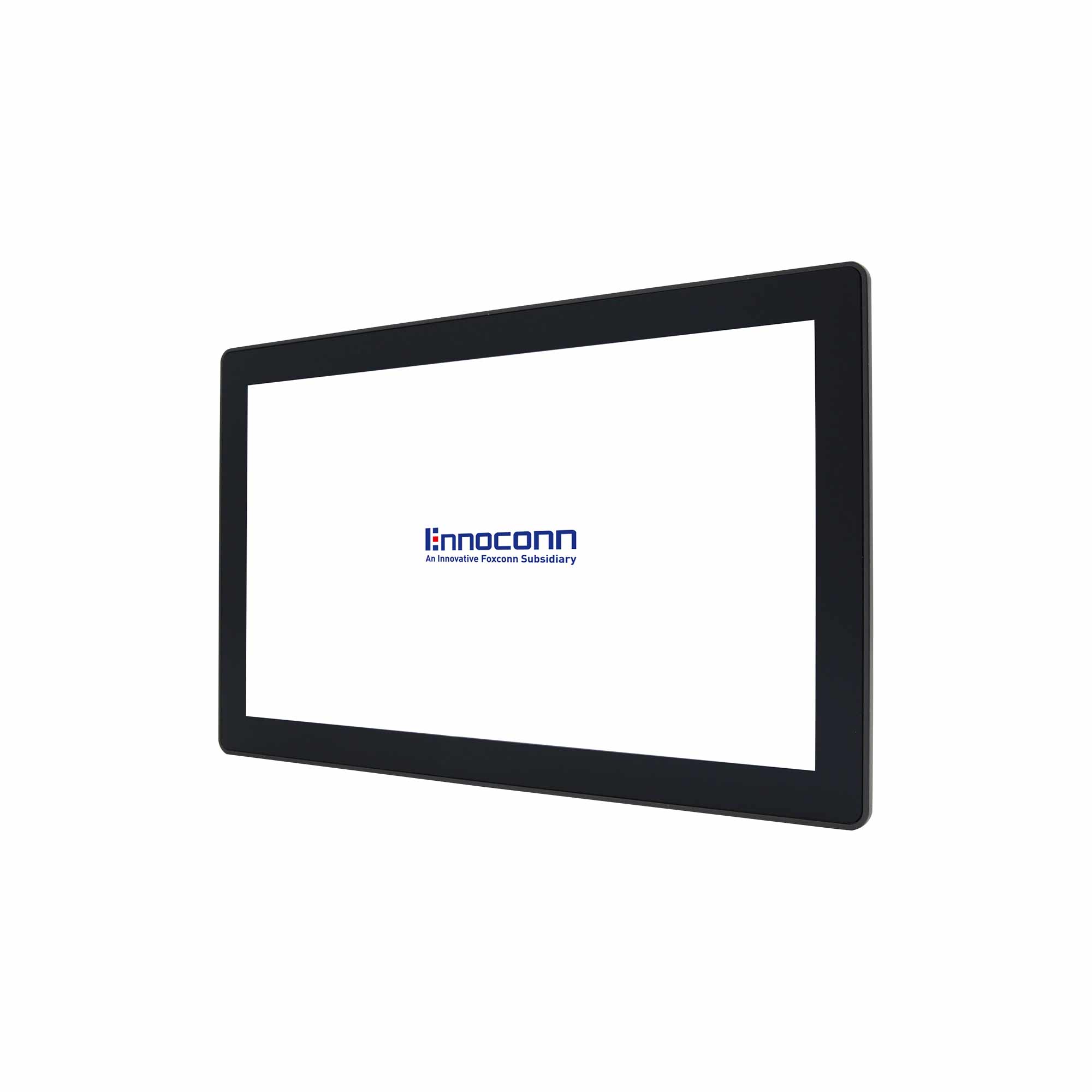

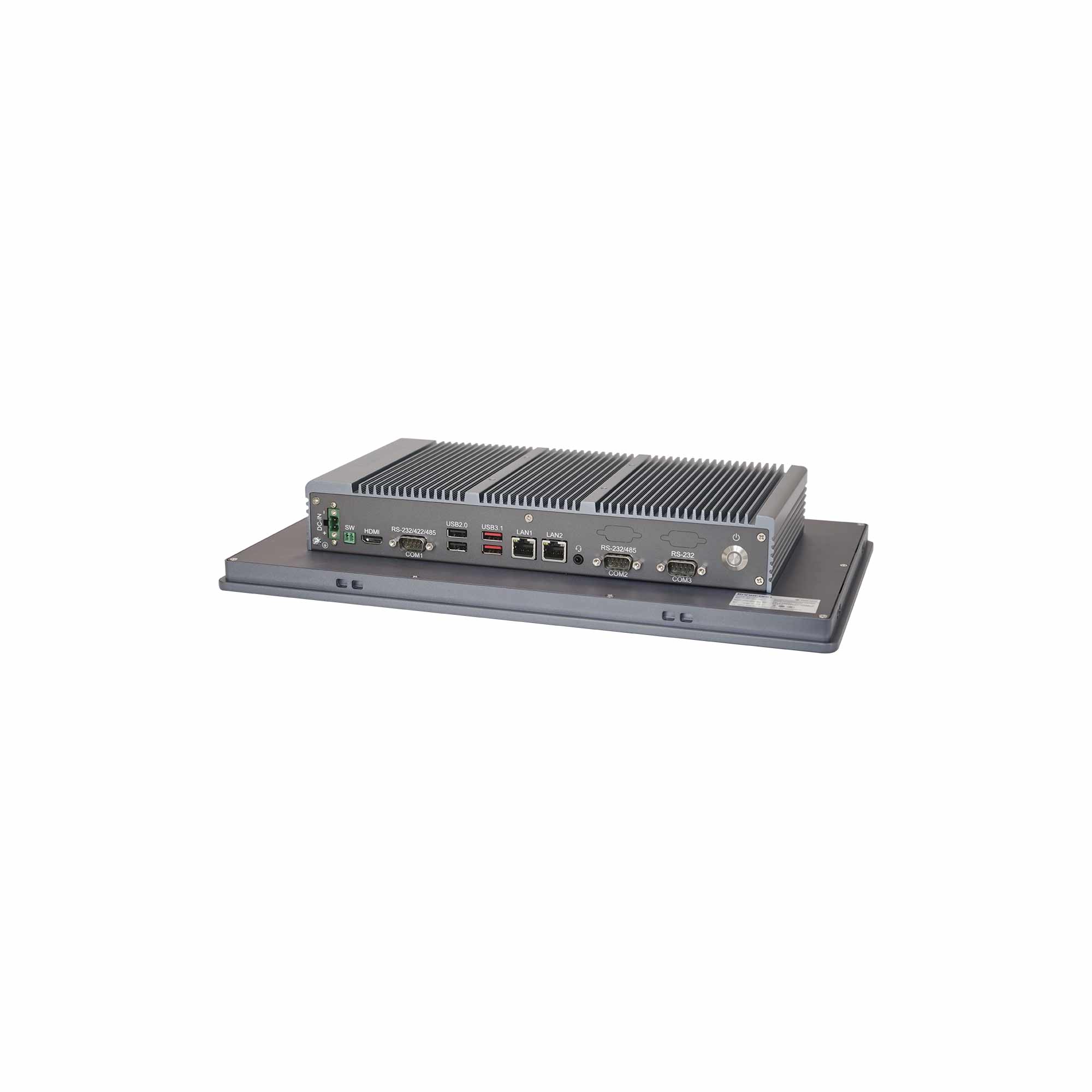

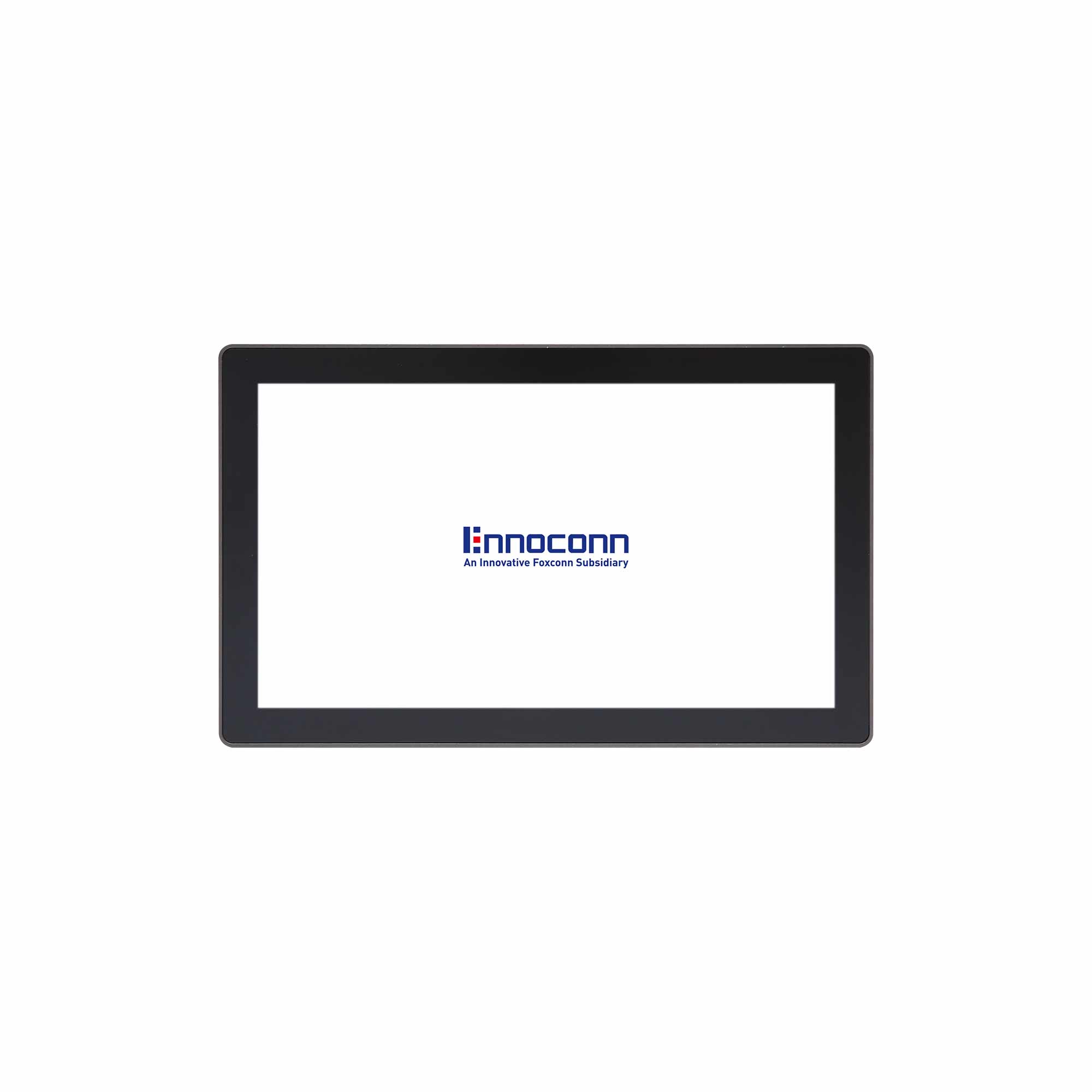

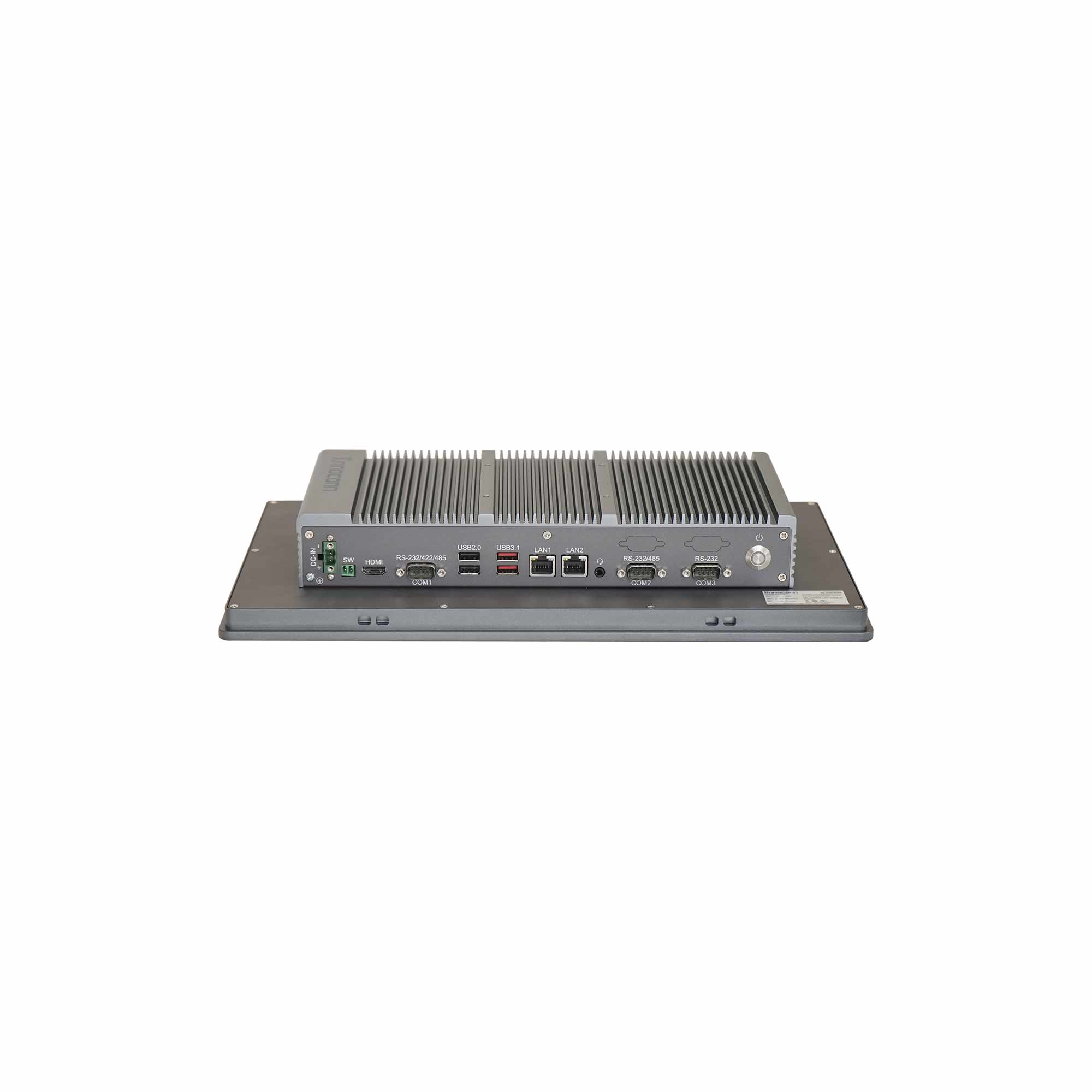

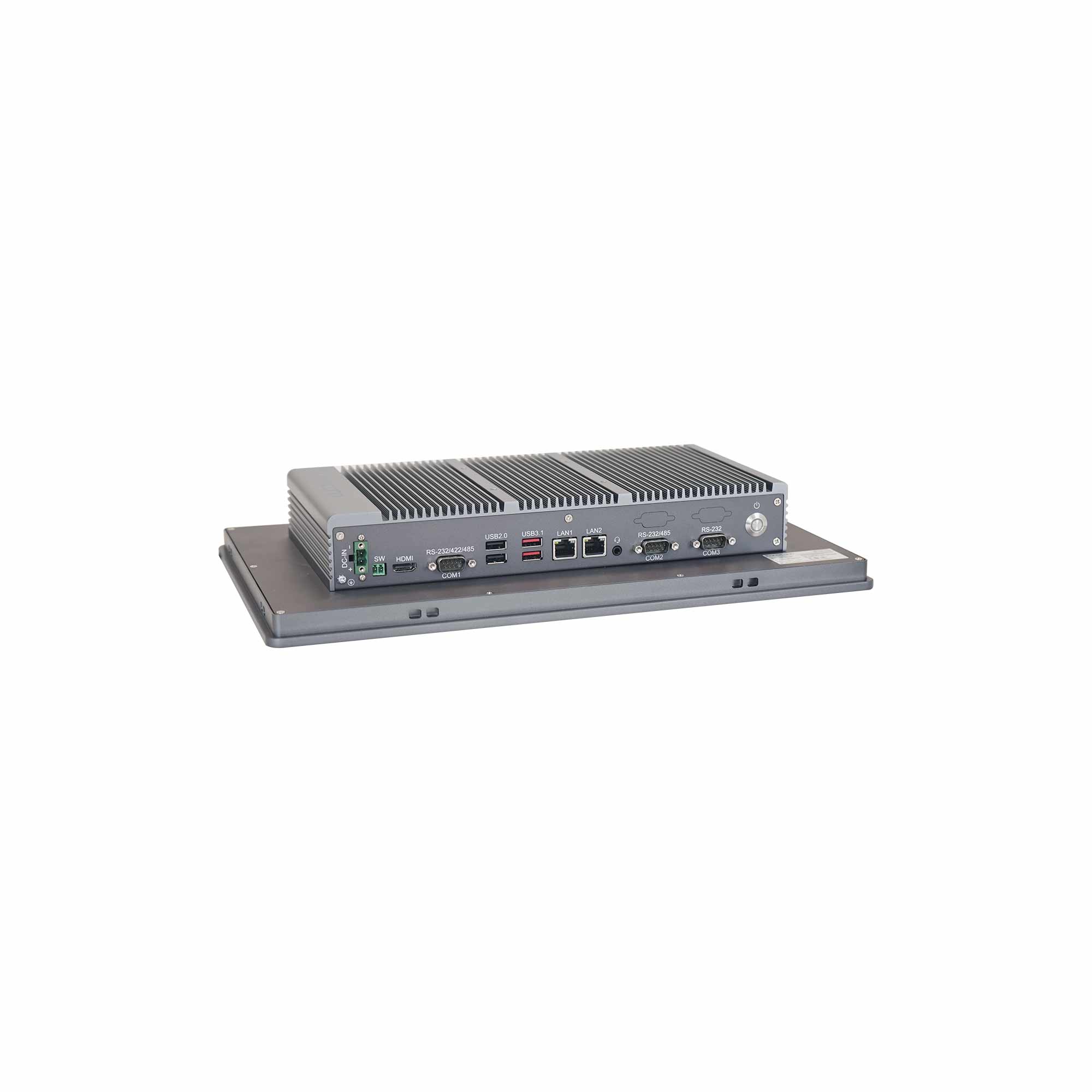

工业无风扇触摸一体机,采用15.6寸 全平面五线电阻屏,Intel®Elkhart Lake Celeron®J6412处理器
处理器 Processor | Intel®Elkhart Lake Celeron®J6412 processor (2.00 GHz/2.6GHz) |
内存 Memory | 1 x DDR4 2133/2400/3200hz SO-DIMM slot, up to 32GB |
存储 Storage | 1 x M.2 2242 SSD slot |
图形 Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
操作系统 OS | Windows 10, Linux |
看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
尺寸 Size | 15.6 inches |
分辨率 Resolution | 1366(H) x 768(V) |
屏幕宽高比 Ratio | 16:9 |
亮度 Brightness | 500 nits |
可视角 Viewing Angle | CR ≥ 10; θx 160(H)/ θy 150° (V) |
对比度 Contrast Ratio | 600 |
背光 Backlight | LED Backlight |
背光寿命 Backlight Lifetime | 50000Hrs |
触摸屏 Touch Type | 10 点投射式电容屏 P-cap Multi-Touch |
触击 Touch | 35,000,000 times |
串口 COM | 1 x RS232/RS422/RS485-COM1 1 x RS232(default)/RS485(Jumper)-COM2 1 x RS232-COM3 |
USB | 2 x USB2.0, 2 x USB3.1 |
网口 Ethernet | 2 x RJ45,Intel® L226V GbE (10/100/1000 Mbps) |
显示 Video | 1 x HDMI (up to 4096x2160@60hz) |
音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec 4Ω3W speakerx2 |
远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
电源输入 Power Input | 1 x Power Connector (2P Phoenix) |
扩展接口 Expansion | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x M.2 2230 slot (PCIe/ USB2.0 signal supported) 1 x M.2 2242 slot(SATA signal supported) 1 x SIM socket for 3G/4G 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 1 x RS232-COM4 2 x RS232(RX/TX)-COM5/6 2 x USB2.0--For Touch 1 x SATA3.0/Power 5V for HDD |
前框 Front Panel | 铝 Aluminum |
铝挤 Heat-Sink | 铝 Aluminum |
底板 Rear Cover | 铁 SECC |
安装方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) |
尺寸 Dimension | 395 x 245.5 x 66mm |
建议开孔尺寸Cut Out | 387 x 237.5mm |
重量 Weight | 4.2Kg |
操作温度 Operation Temp. | -10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
存储温度 Storage Temp. | -40℃ ~ 70℃ |
湿度 Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing |
随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation |
机械冲击 Shock | 10g 11ms operation, 30g 11ms Non-operation |
前面板防护 Ingress Protection | Front panel IP66 |
电源输入 Power Input | 12~36V DC |
安规认证 Safety Certification | CCC/CE/FCC |
