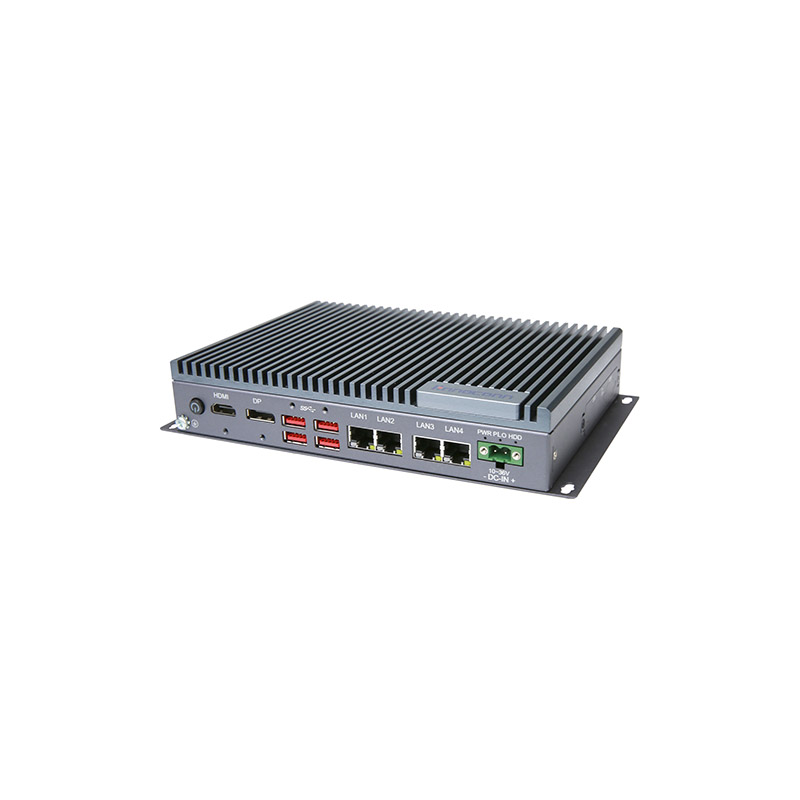

嵌入式工业电脑 CES-R814/R836-W44A

产品特性：

CES-R814/R836/R866-W44A
板载Intel^® 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU, 主频最大可以达到2.2GHz
支持单通道DDR4 2133/2400 MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持4个千兆网口
支持DP/HDMI 扩展同步于/异步显示
内置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI)，1 x M.2 3042/3052 多种模块扩展
10~36V宽压设计，可锁附DC-IN接口

产品介绍：

Intel® 8th Gen. U i3-8145UE/i5-8365UE/i7-8665UE CPU, TDP 15W, 4 x LAN, 4 x COM (up to 6 x COM), 6 x USB, 10-36V power input, fan-less system

系统 System

处理器 Processor	Intel^® 8th Gen. U Dual Core Processors i3-8145UE (2.2GHz up to 3.9GHz) Intel^® 8th Gen. U Quad Core Processors i5-8365UE (1.6GHz up to 4.1GHz) Intel^® 8th Gen. U Quad Core Processors i7-8665UE (1.7 GHz up to 4.4GHz)
内存 Memory	1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB
图形 Graphics	Intel@UHD Graphics620, dual display
存储 Storage	1 x mSATA 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY
操作系统 OS	Windows 10, Linux
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet	4 x RJ45, Intel^® 2 x i210 and 2 x i211 GbE (10/100/1000 Mbps)
显示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
音频 Audio	1 x Audio(Line-out&Mic-in 2 in 1) Realtek^® ALC888S HD Audio codec 1 x Built-in Speaker (optional)

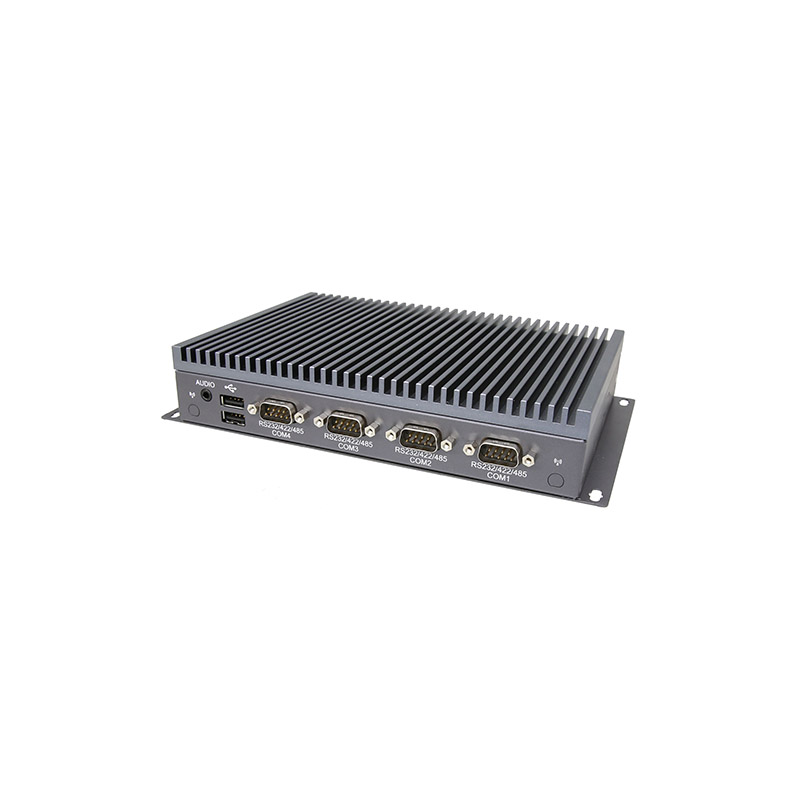

串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin-head)
USB	4 x USB 3.1 Gen2 2 x USB 2.0
GPIO	1 x 8bit programmable GPIO (optional)
按钮 Button	1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off)
指示灯 LED	1 x Power LED (Green for DC-in) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (PCIE/SATA/USB2.0 Singal Support) 1 x M.2 2230 Key-E slot (only supported CNVI Wifi module)
SIM 卡	1 x SIM Card socket for 3G/4G module

扩展模组 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x M.2 3042/3052 Key-B slot(5G communication module supported) 1 x EDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Built-in USB3.0 1 x EDP: max resolution up to 4096x2304@60Hz

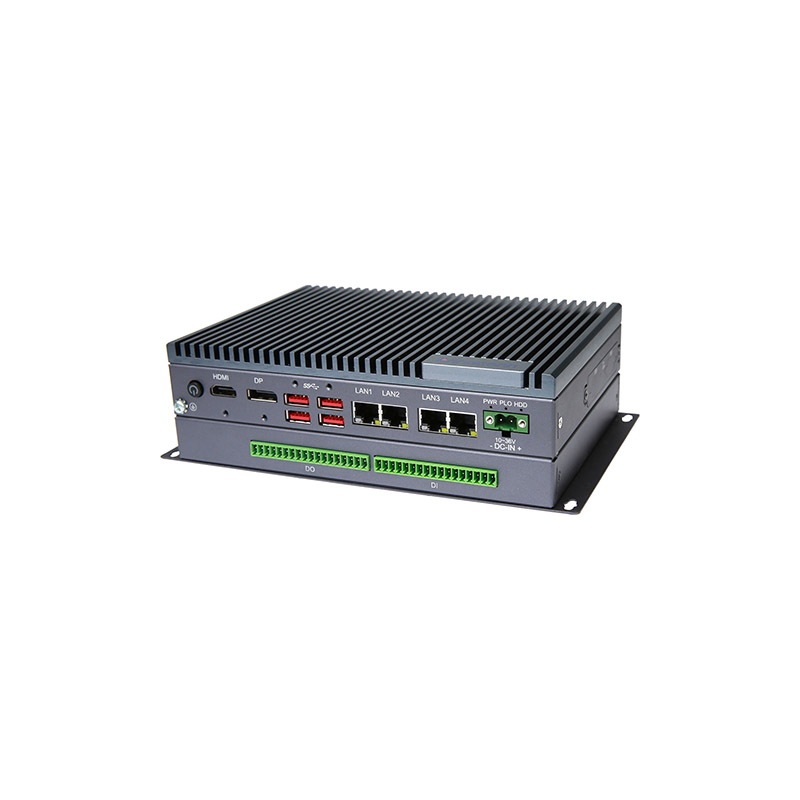

Extension Module C (optional)	1 x 16bit DI/O with optocoupler isolation DI 2500vrms DO 2500vrms, response time ≤2ms, Output Frequency≤500Hz Maximum driving capacity 100mA, NPN or PNP by optional

环境 Environmental

操作温度 OperatingTemp.	-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

10-36V DC, 2-pin phoenix connector

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	Desk-Mount（桌面式） Wall-Mount（壁挂式） VESA-Mount (100 x 100mm)(optional)

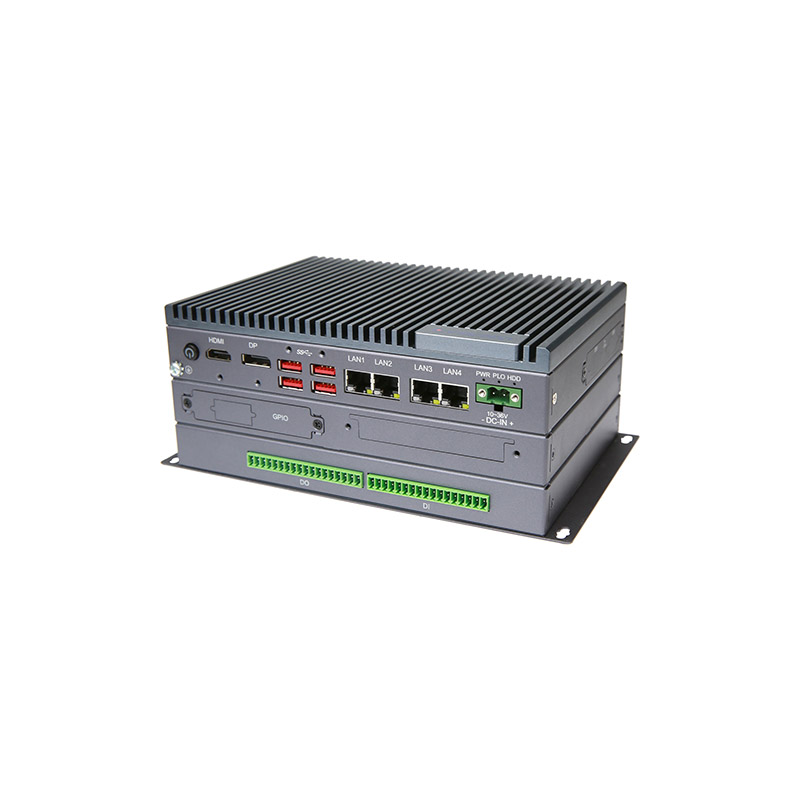

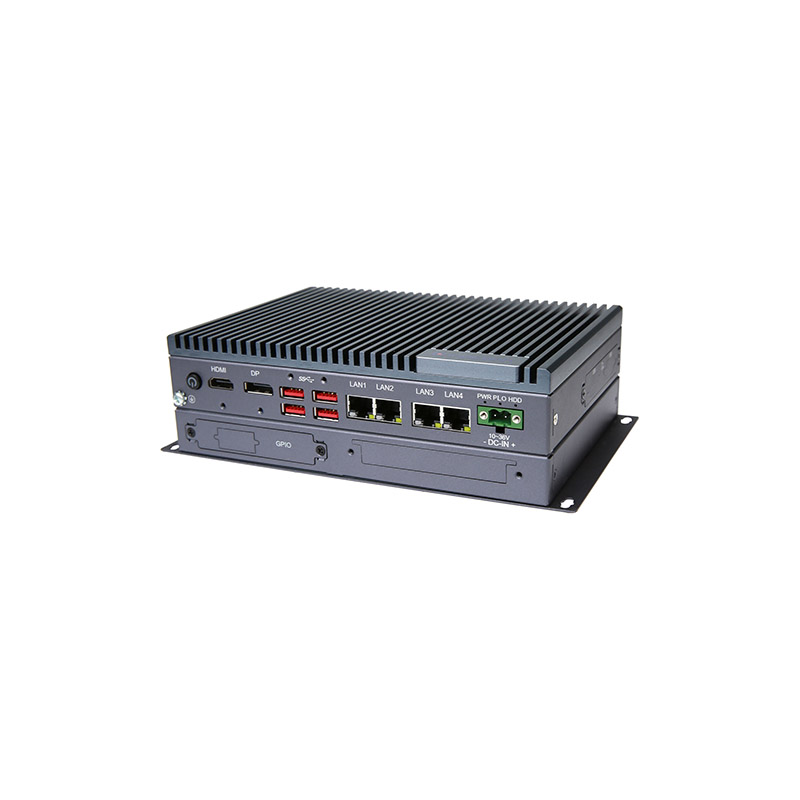

尺寸 Dimension	224 x 140 x 40 mm (基础型) 224 x 140 x 65 mm (一层扩展) 224 x 140 x 85 mm (二层扩展)
重量 Weight	1.35kg

认证 Certification

安规认证 Safety Certification

CCC
