产品介绍:

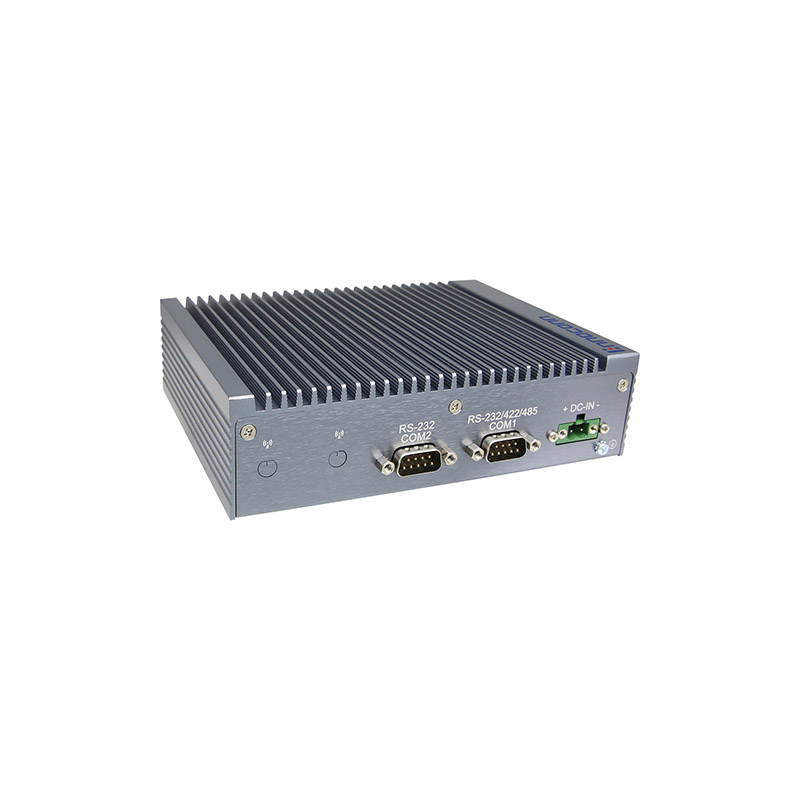

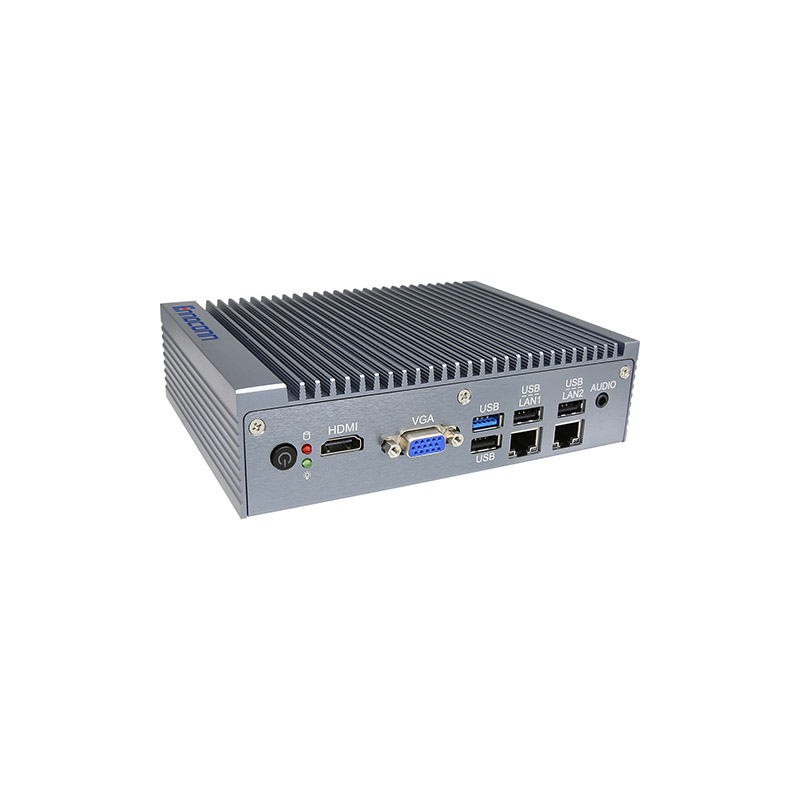

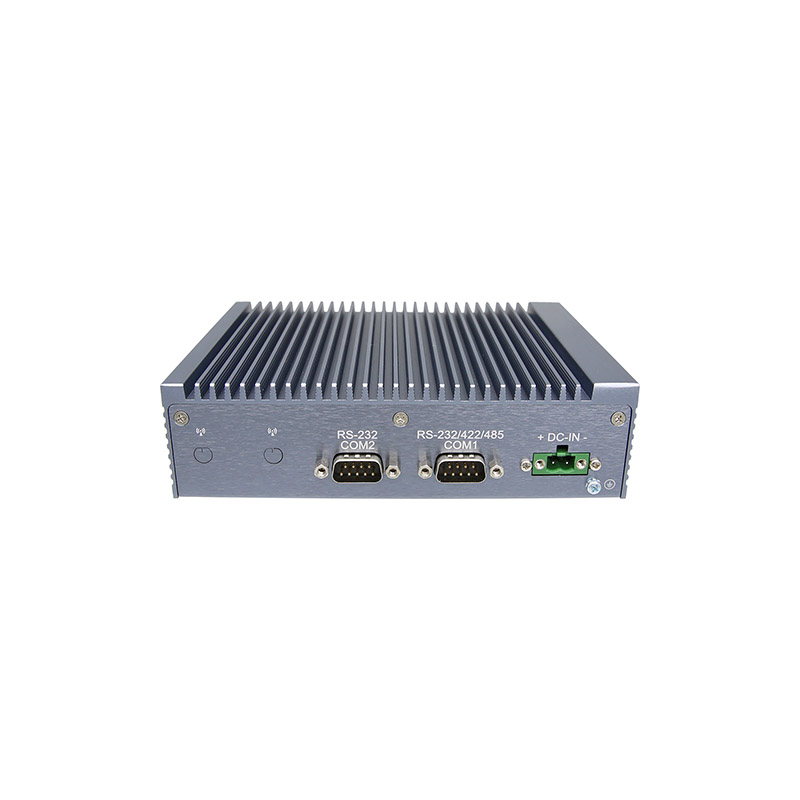

Intel®Bay Trail J1900 CPU, quad-core, TDP 10W, 2 x LAN, 2 x COM, 4 x USB, 9-36V power input,fan-less system
网口 Ethernet | 2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
显示 Video | 1 x VGA: max resolution up to 2560 x 1600 1 x HDMI: max resolution up to 1920 x 1200 |
音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC269 HD Audio codec |
串口 COM | 1 x RS232/422/485 1 x RS232 |
USB | 3 x USB 2.0 (USB SR Pro supported) 1 x USB 3.0 (USB SR Pro supported) |
GPIO | 1 x 8-bit programmable GPIO (optional) |
按钮 Button | 1 x Power button |
指示灯 LED | 1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) |
扩展接口 Expansion | 1 x Mini-PCIe Slot (PCIe/SATA signal supported) |
SIM 卡 | 1 x SIM socket |
操作温度 OperatingTemp. | -10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
存储温度 Storage Temp. | -40℃ ~ 85℃ |
湿度Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
振动 Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
机械冲击 Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
电磁兼容 ESD | Contact 6KV, Air 10KV |
电源输入 Power Input | 9~36V DC, 2-pin phoenix connector |
外观 Housing | 铝合金 Aluminum Alloy |
安装方式 Mounting | Desk-Mount, (Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm,100 x 100mm optional) |
尺寸 Dimension | 165 x 125 x 45 mm |
重量 Weight | 0.8kg |
安规认证 Safety Certification | CCC |
