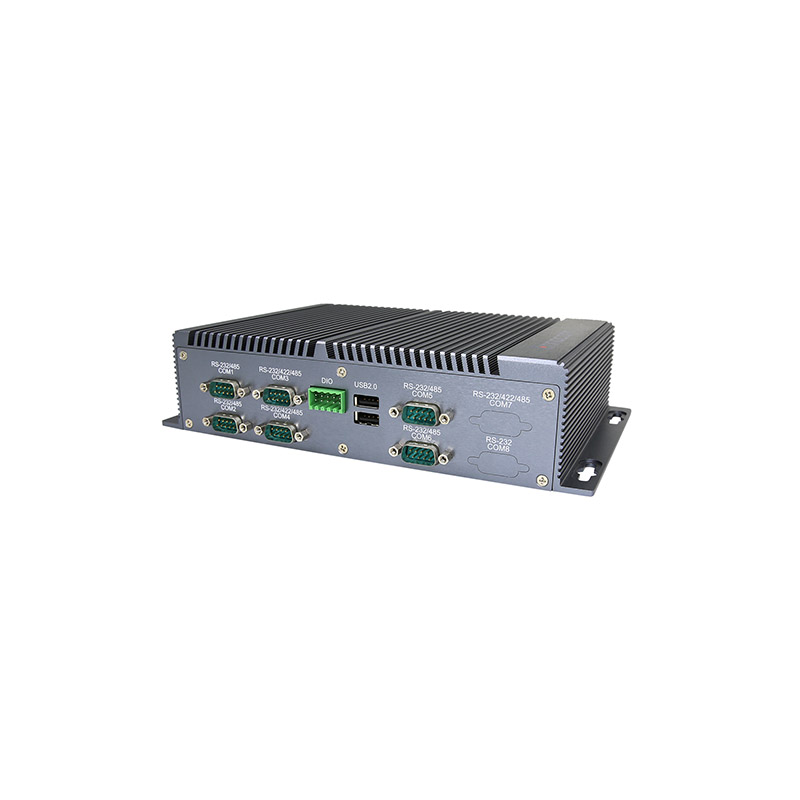

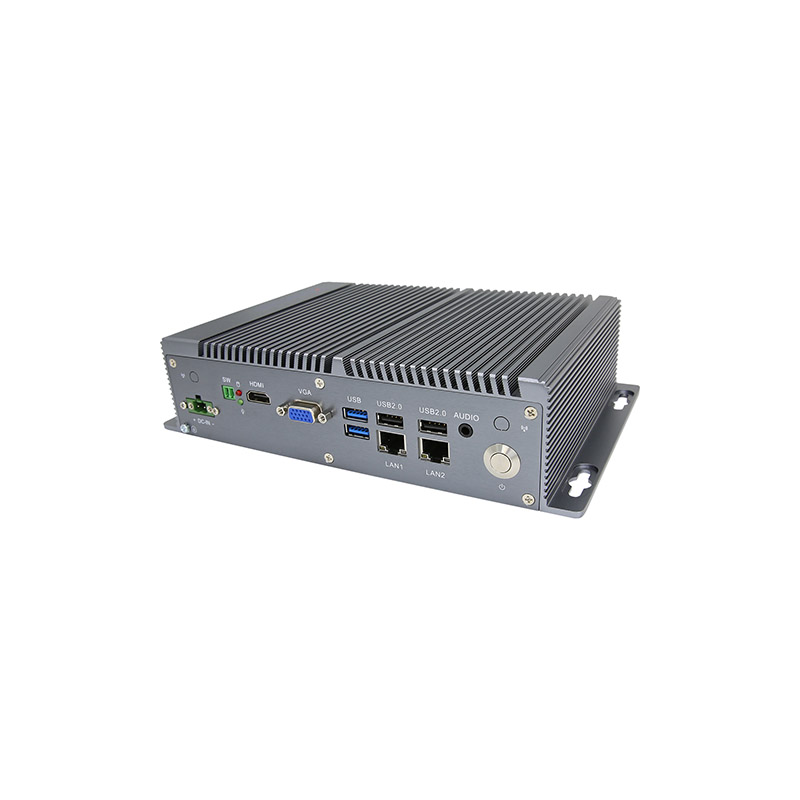

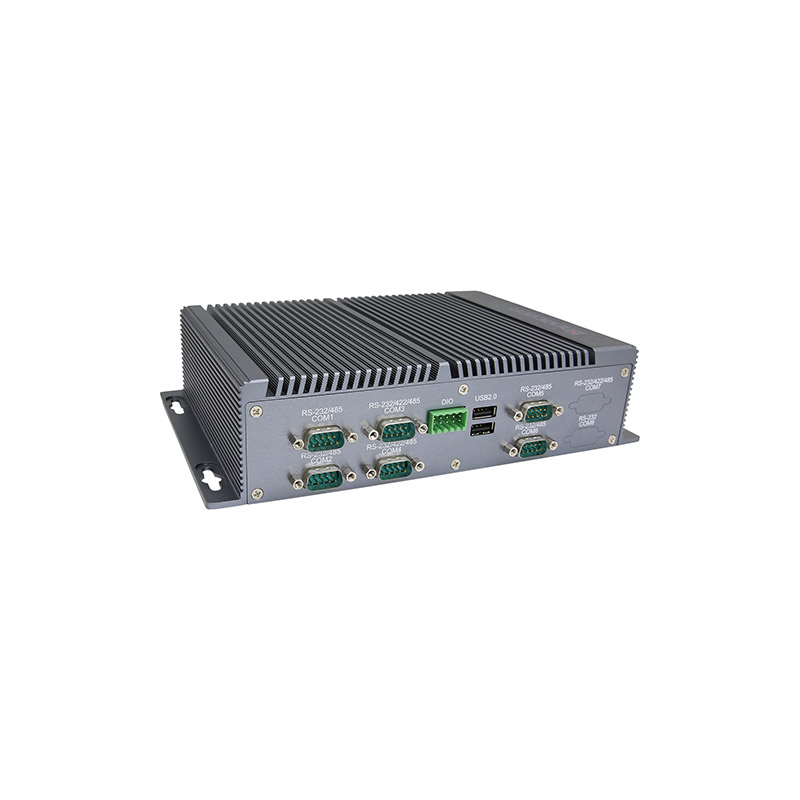

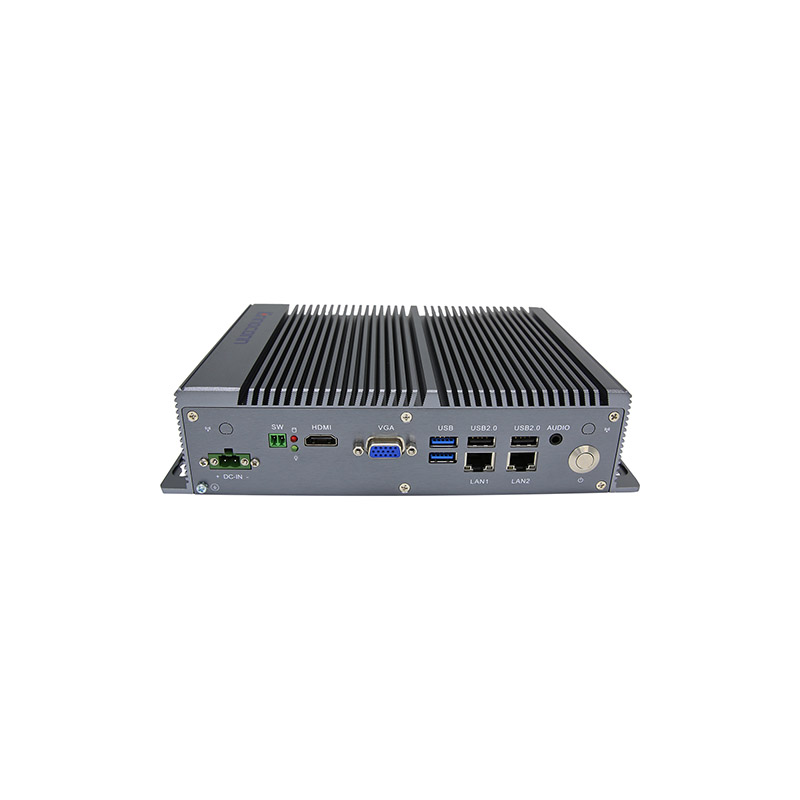

嵌入式工业电脑 CES-R6X0-W26A

产品特性：

CES-R6X0-W26A
板载Intel^® Skylake i3-6100U/i5-6200U/i7-6500U双核处理器，主频最大可以达到2.5GHz
支持单通道DDR4 1866/2133MHz SO-DIMM内存插槽，内存容量最大可达16GB
支持双千兆网口
支持VGA/HDMI多扩展显示
内置1 x 2.5寸HDD/SSD可扩充支架
内置1 x Mini-PCIe及2 x M.2支持多种模块扩展
宽压9-36V DC-IN，可锁附凤凰端子接口

产品介绍：

Intel® Skylake Core i3-6100U/i5-6200U/i7-6500U CPU dual-core, TDP 15W, 2 x LAN, 6 x COM, 6 x USB, 9-36V power input, fanless system

系统 System

处理器 Processor	Intel^® Core ™ i3-6100U Processor (2.3GHz) Intel^® Core ™ i5-6200U Processor (2.3GHz, up to 2.8GHz) Intel^® Core ™ i7-6500U Processor (2.5GHz, up to 3.1GHz)
内存 Memory	1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB
图形 Graphics	Intel^® HD Graphics 520, dual display
存储 Storage	1 x SATA 3.0 for 2.5" HDD/SSD 1 x mSATA, 1 x M.2 2242 Slot
操作系统 OS	Windows 7/8/10, Linux
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet	2 x RJ45 Intel^® i211AT GbE (10/100/1000 Mbps)
显示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160
音频 Audio	1 x Line-out&Mic-in (2 in 1) Realtek^® ALC269 HD Audio codec
串口 COM	3 x RS232/422/485 (1 x RS232/422/485 optional) 4 x RS232/485 1 x RS232 (optional)
USB	4 x USB2.0, 2 x USB3.0
GPIO	1 x 8-bit programmable GPIO
按钮 Button	1 x Power button
指示灯 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)
远程开关 Remote ON-OFF	1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 slot (WiFi/PCIe/USB2.0 signal supported)
SIM 卡	1 x SIM socket

扩展模组 Extension module

环境 Environmental

操作温度 OperatingTemp.	-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
电磁兼容 ESD	Contact 6KV, Air 10KV

电源 Power

电源输入 Power Input

9~36V DC, 2-pin phoenix connector

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm,100 x 100mm,optional)
尺寸 Dimension	245 x 153 x 57.5 mm
重量 Weight	1.9kg

认证 Certification

安规认证 Safety Certification

CCC, CE, FCC
