产品介绍:

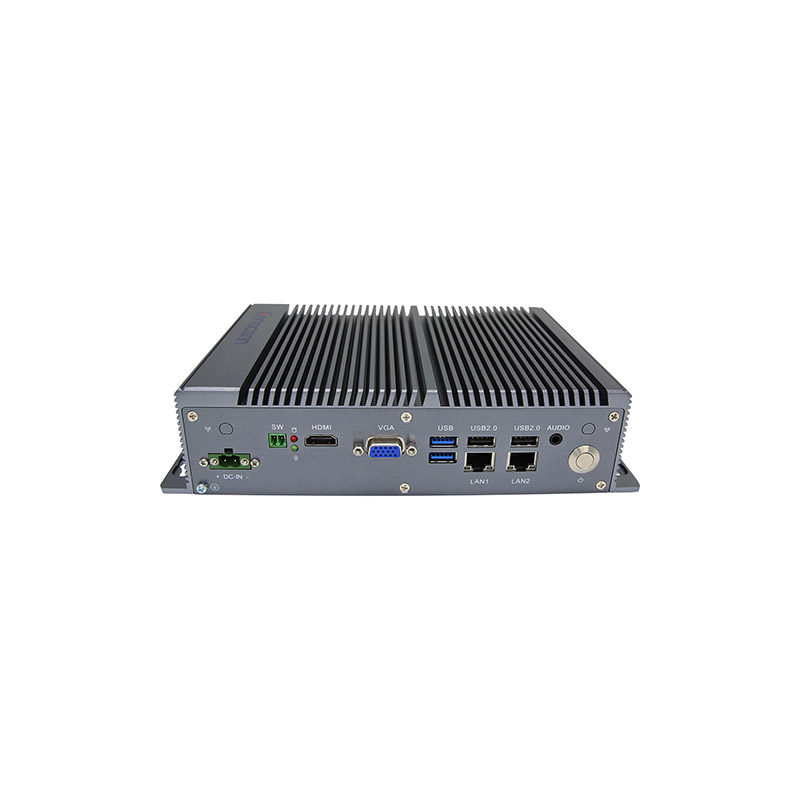

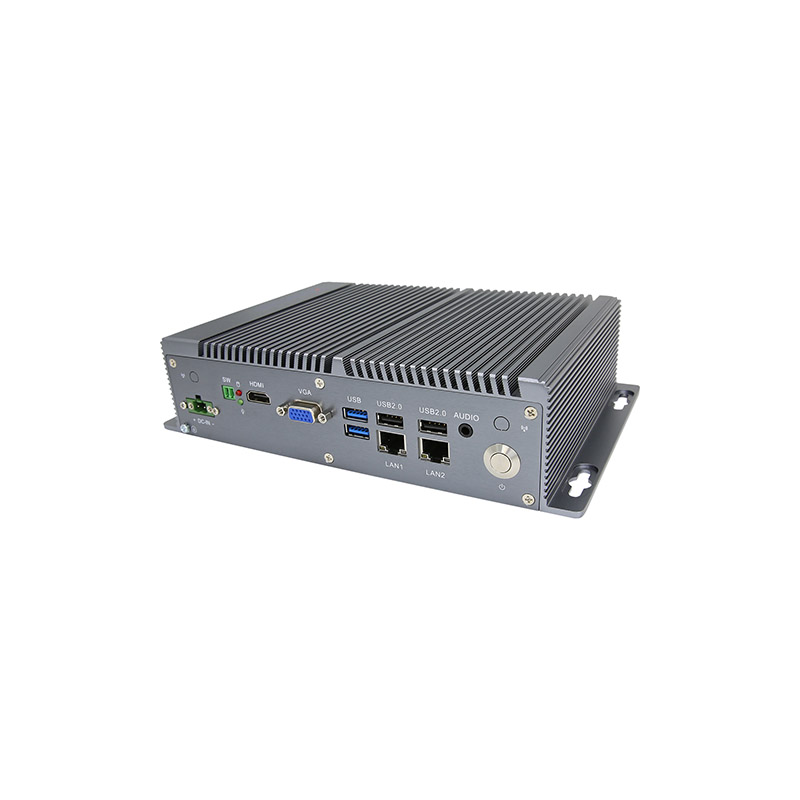

Intel® Kabylake Core i3-7100U/i5-7200U/i7-7600U CPU dual-core, TDP 15W, fanless, 2 x LAN, 6 x COM, 6 x USB, 9-36V power input, fanless system
网口 Ethernet | 2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
显示 Video | 1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160 |
存储 Storage | 1 x Line-out&Mic-in (2 in 1), Realtek® ALC269 HD Audio codec |

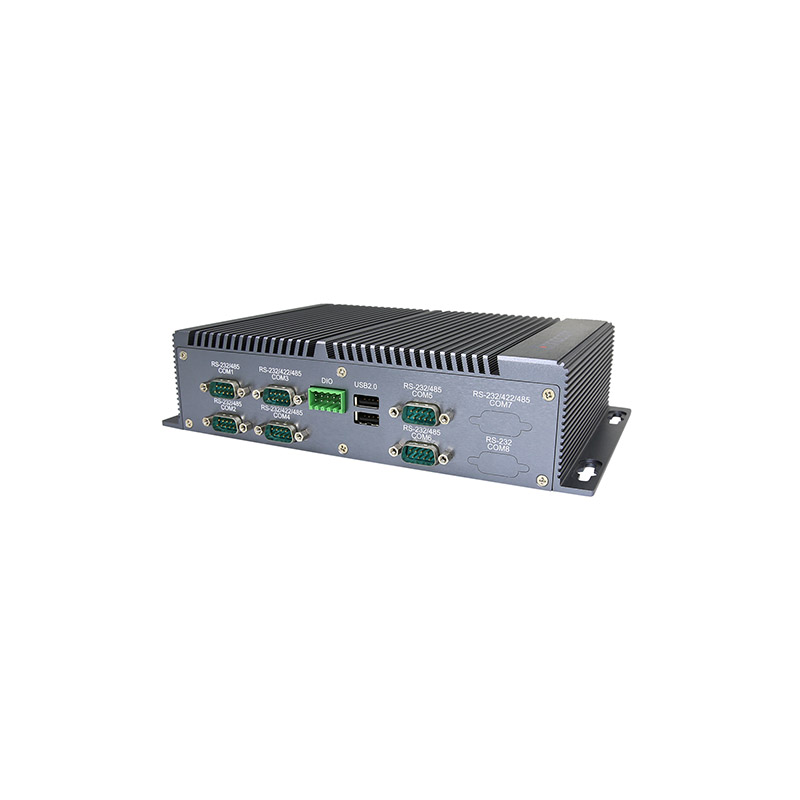

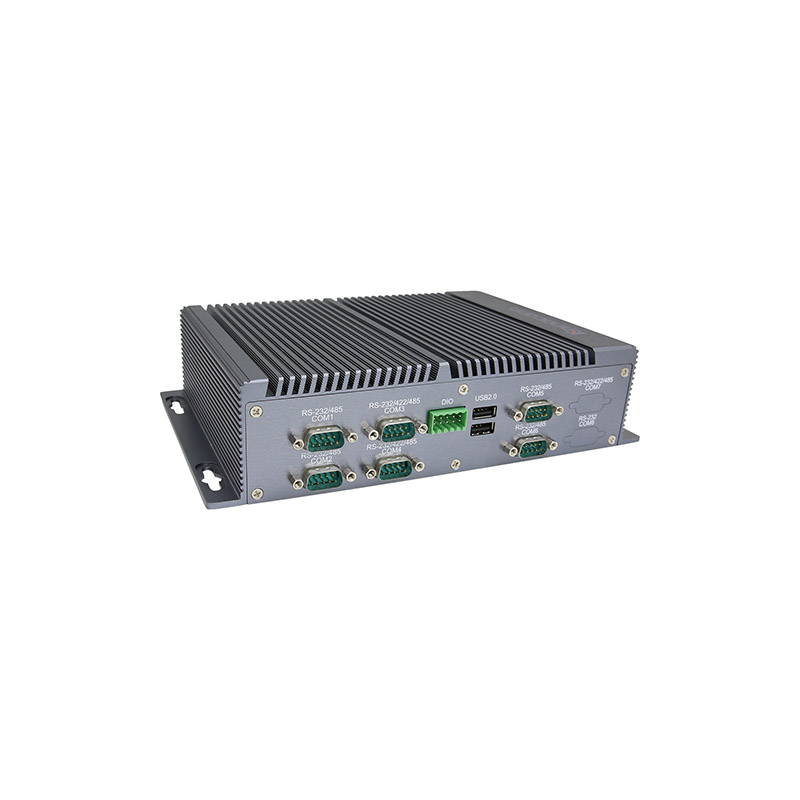

串口 COM | 3 x RS232/422/485 (1 x RS232/422/485 optional) 4 x RS232/485 1 x RS232 (optional) |
USB | 4 x USB2.0, 2 x USB3.0 |
GPIO | 1 x 8bit programmable GPIO |
按钮 Button | 1 x Power button |
指示灯 LED | 1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) |
远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
扩展接口 Expansion | 1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 slot (WiFi/PCIe/USB2.0 signal supported) |
SIM 卡 | 1 x SIM socket |
操作温度 OperatingTemp. | -20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
存储温度 Storage Temp. | -40℃ ~ 85℃ |
湿度Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
振动 Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
机械冲击 Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
电源输入 Power Input | 9~36V DC, 2-pin phoenix connector |
外观 Housing | 铝合金 Aluminum Alloy |
安装方式 Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm,100 x 100mm,optional) |
尺寸 Dimension | 245 x 153 x 57.5 mm |
重量 Weight | 1.9kg |
安规认证 Safety Certification | CCC, CE, FCC |
