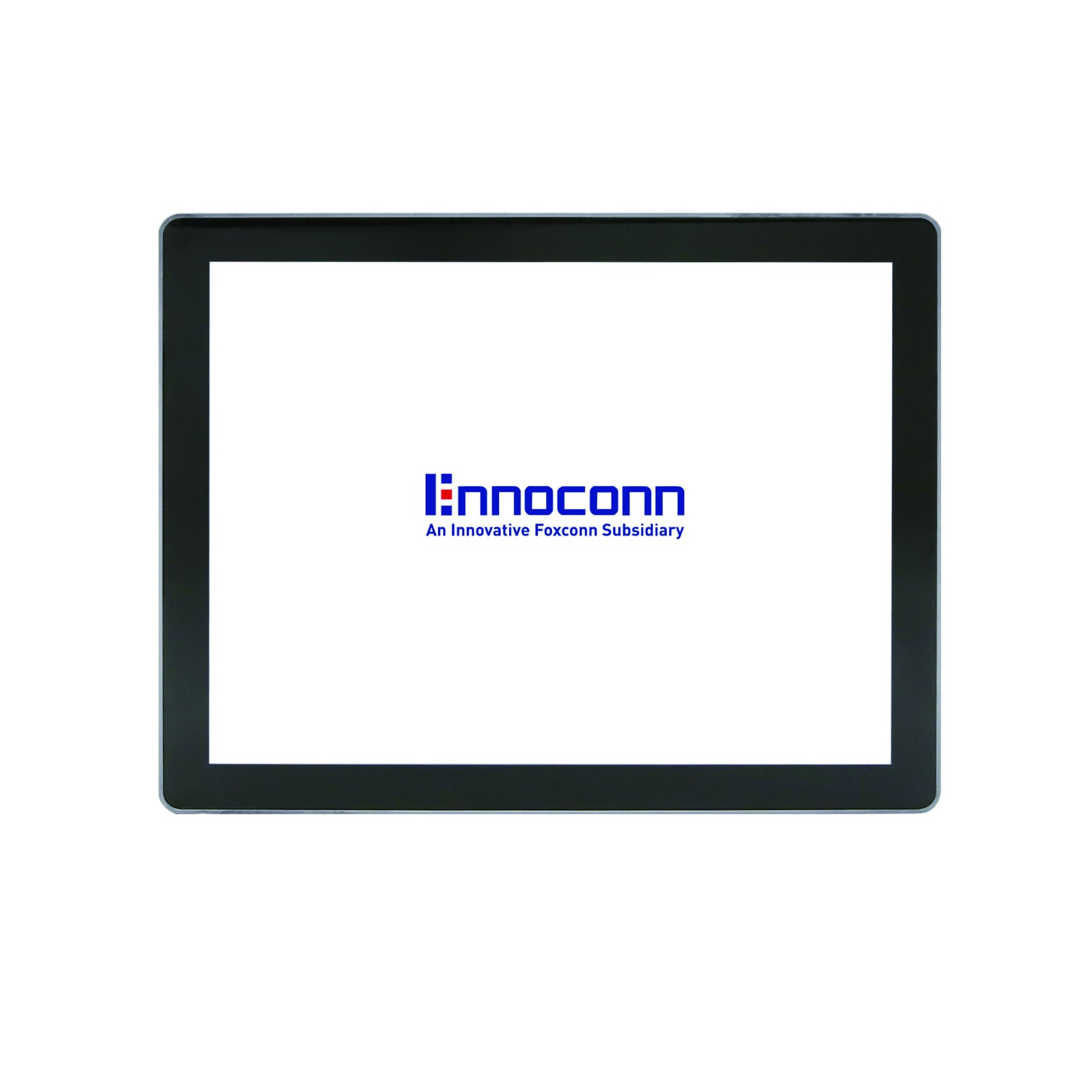

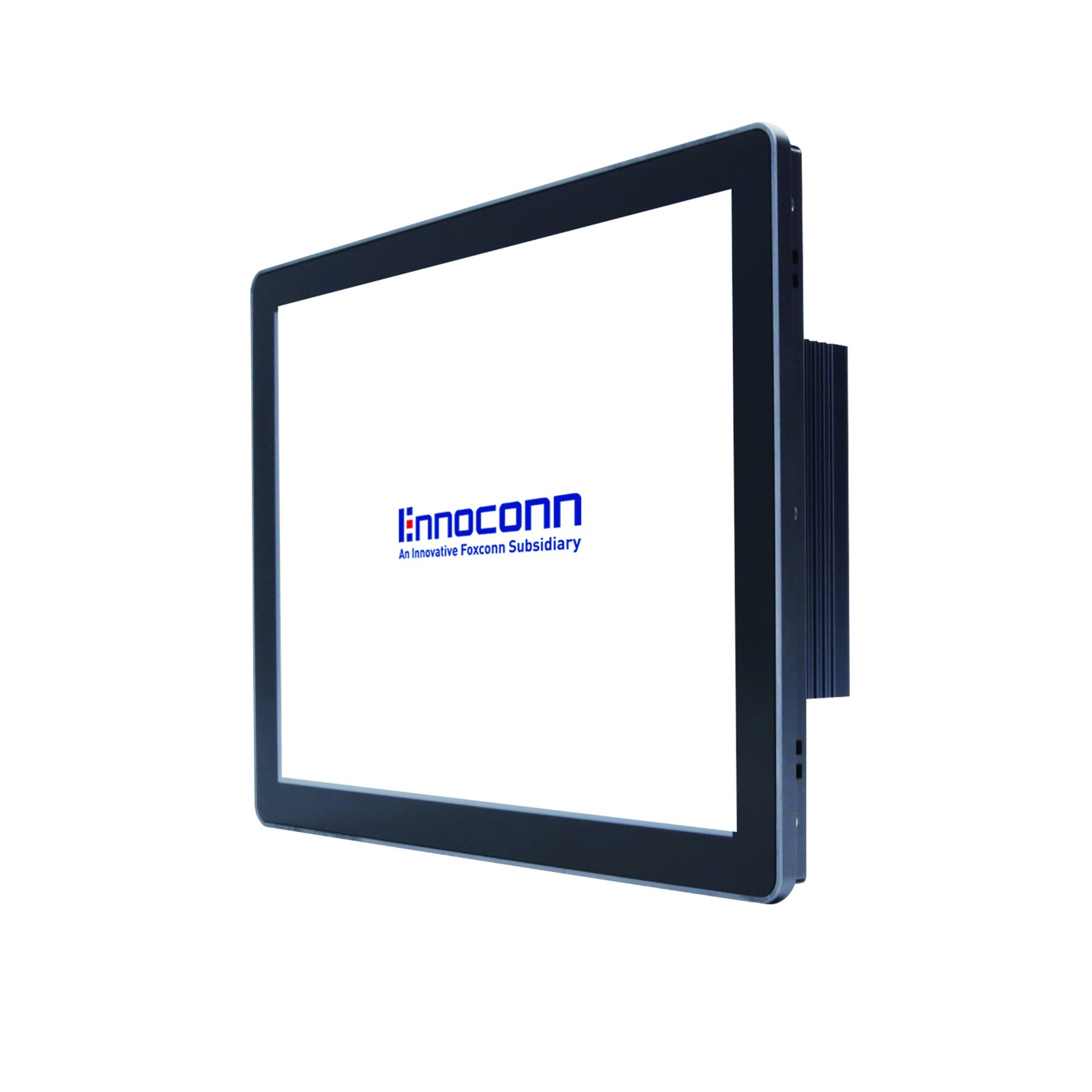

15"工业平板电脑 CEP-15RS-6X0A

产品介绍：

工业无风扇触摸一体机，采用15" 全平面五线电阻屏，Intel® Skylake Core™ i3-6100U/i5-6200U处理器

系统 System

处理器 Processor	Intel^® 6th Gen. Core™ i3-6100U processor (2.30GHz) Intel^® Core™ i5-6200U Processor(2.3GHz, up to 2.8GHz)
内存 Memory	1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB
存储 Storage	1 x 2.5" Drive Bay for SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot, 1 x mSATA
图形 Graphics	Intel^® HD Graphics 520
操作系统 OS	Windows 7/8.1/10, Linux
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

触摸屏 Touchscreen

触摸屏 Touch Type	全平面五线电阻屏 5-Wire Resistive Touch
触击 Touch	35,000,000 times

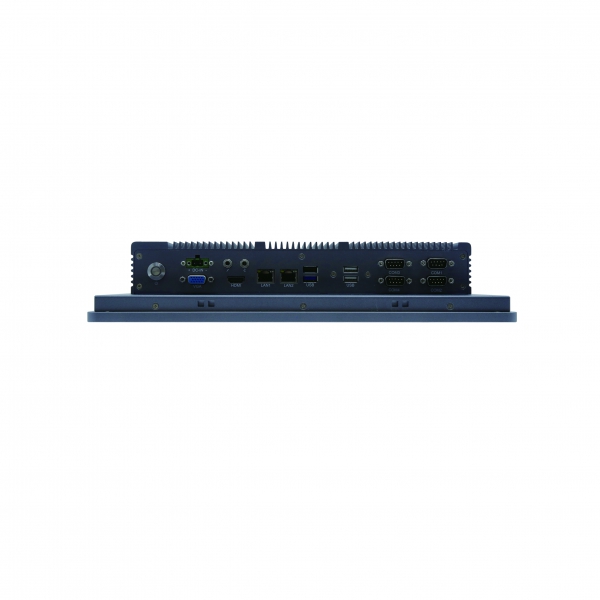

外部接口 External I/O

串口 COM	2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4)
USB	2 x USB 2.0, 2 x USB 3.0
网口 Ethernet	1 x RJ45 Intel^® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel^® I219-LM GbE (10/100/1000 Mbps)
显示 Video	1 x HDMI (up to 4096 x 2160)
音频 Audio	1 x Audio(Line-out&Mic-in 2 in 1), Realtek^® ALC269 HD Audio codec
远程开关 Remote ON-OFF	1 x Remote ON-OFF
电源输入 Power Input	1 x Power Connector (2P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot(PCIe/SATA signal supported) 1 x M.2 2230 slot (WiFi supported) 1 x SIM socket

机构 Mechanical

前框 Front Panel	铝 Aluminum
铝挤 Heat-Sink	铝 Aluminum
底板 Rear Cover	铁 SECC
安装方式 Mounting	Panel Mount, Wall and VESA-mount (75 x 75mm)
尺寸 Dimension	351.6(W) x 275.6(H) x 68.4(D)mm
建议开孔尺寸Cut Out	341.4 x 265.4mm
重量 Weight	4.2kg

环境 Environmental

操作温度 Operation Temp.	-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)
存储温度 Storage Temp.	-40℃ ~ 70℃
湿度 Relative Humidity	5% ~ 95%, 非凝结状态 Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10g 11ms operation, 30g 11ms Non-operation
前面板防护 Ingress Protection	Front panel IP65
